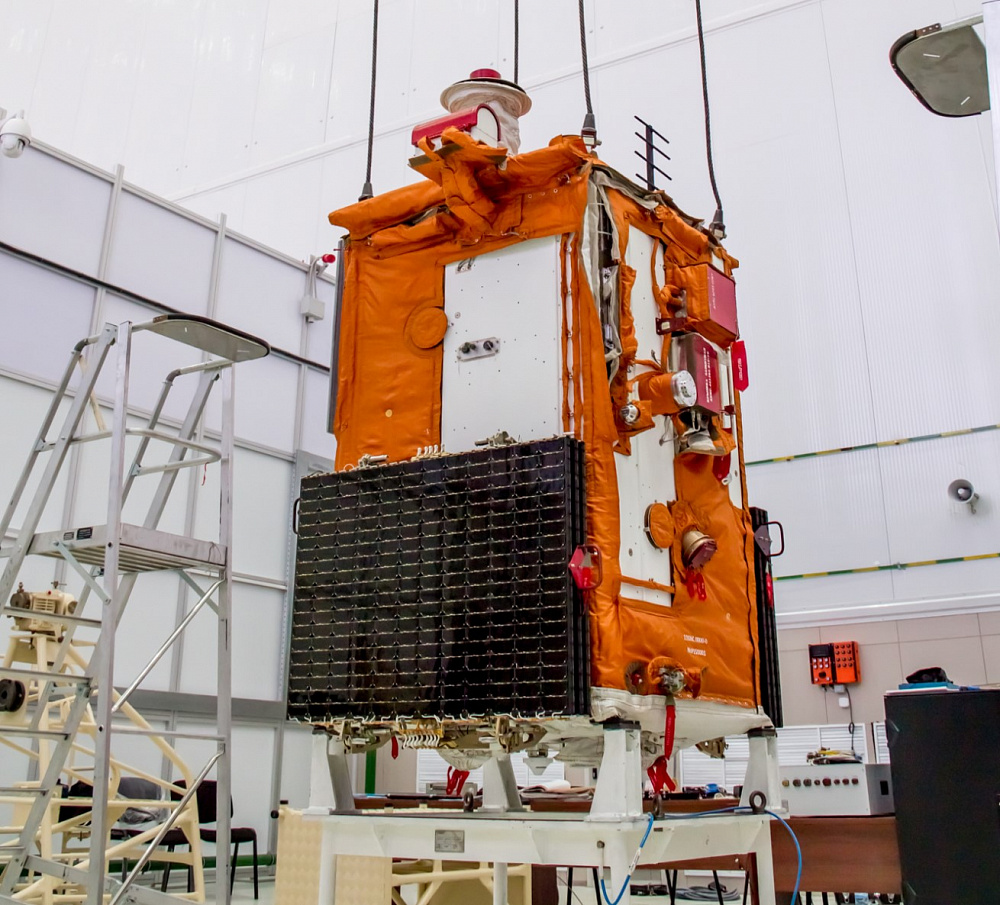

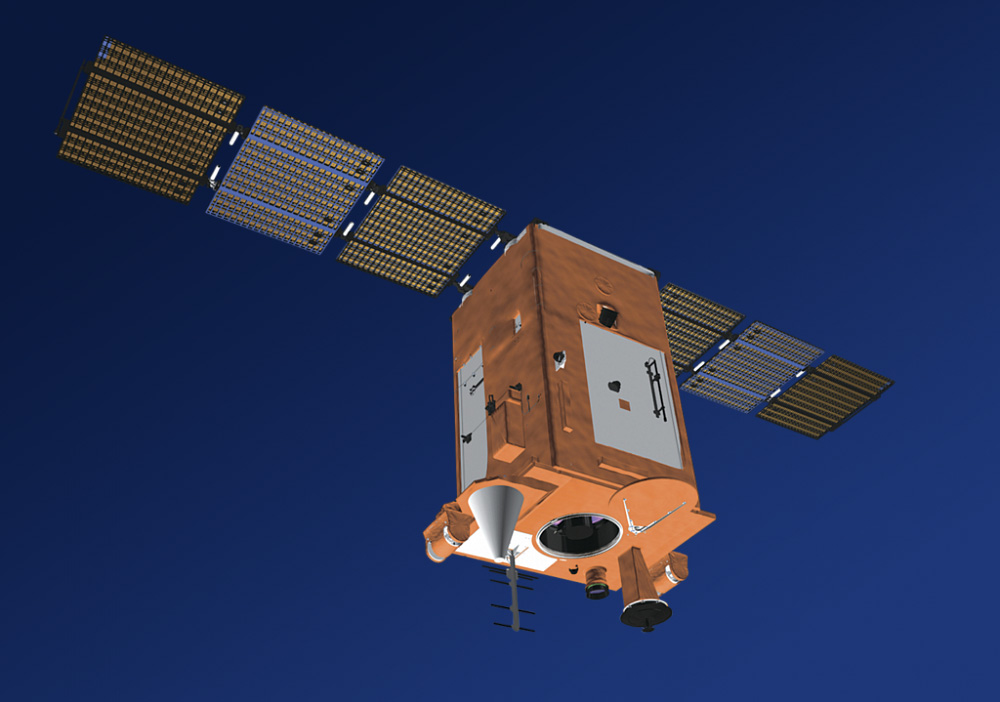

Basic Small Spacecraft Aist-2D
- Purpose: Multipurpose SSC (Earth remote sensing, communication, scientific experiments)
- Year of release: 2013
- Guaranteed service life (years): 5
- Estimated production / delivery time (months): 32
- Flight qualification of the product: Yes
- Brief history of flight qualification: Small Spacecraft Aist-2D has been launched 28.04.2016
- Possibility to adapt the product to customer requirements: Yes
| Parameter | Value |
|---|---|
| Operational orbits | LEO, SSO |
| SSC mass | 530 kg |
| Payload mass | 150 kg |
| Attitude control | Triaxial |
| Attitude accuracy by all angles | 2-3 arcminute |
| Attitude accuracy by angular velocity | 0,005 °/sec |
| Download rate | 150 Mbit/sec |
| Nominal voltage | 27 V |
| PL average daily power consumption | 75 W |
| PL maximal power consumption | 400 W |
Basic Small Spacecraft (SSC).
Peculiarities:
- unpressurized;
- liquidless thermal control system;
- data exchange with a Payload (PL) by CAN and MKO interfaces
