3U Cubesat Platform
- Purpose: This platform is intended for operation in space conditions at an altitude of up to 1500 km.
- Year of release: 2017
- Guaranteed service life (years): 1 year
- Estimated production / delivery time (months): 12
- Flight qualification of the product: No
- Possibility to adapt the product to customer requirements: Yes
| Parameter | Value |
|---|---|
| Mass without Payload | 3 kg |
| Available average power | 12 Wt |
| Average power consumption of onboard systems | no more 3 Wt |
| Battery Capacity | 10 А*ч |
| Onboard voltage bus | 3.3, 5, 8.4 V |
| Orientation accuracy | not worse 1 deg. |
| Stabilization accuracy | not less 0,2 deg\s |
| Voltage and current load of the onboard network for Payload | 5A at 3.3 V; 3A at 5 V; 2A at 8.4 V |
| Payload volume | 2U (10 х 10 х 20 сm) |
| Available weight for Payload | not more 2.5 kg |

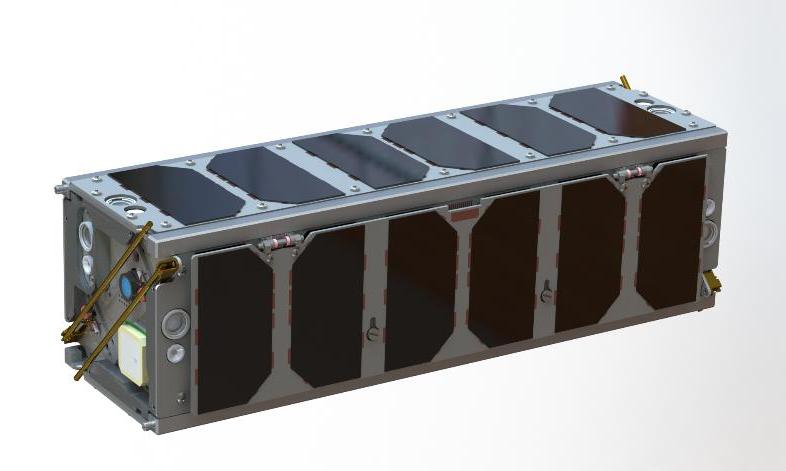

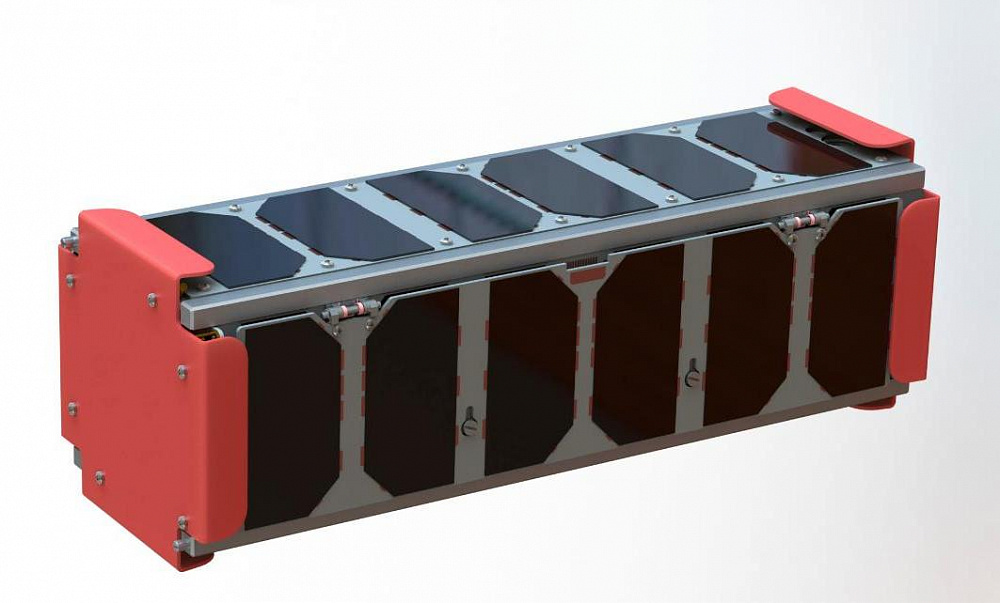

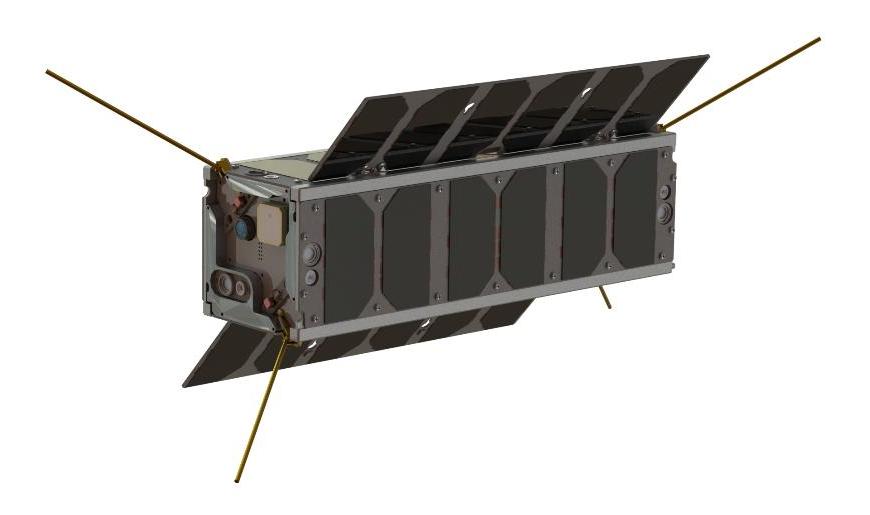

Universal 3U CubeSat Platform.
