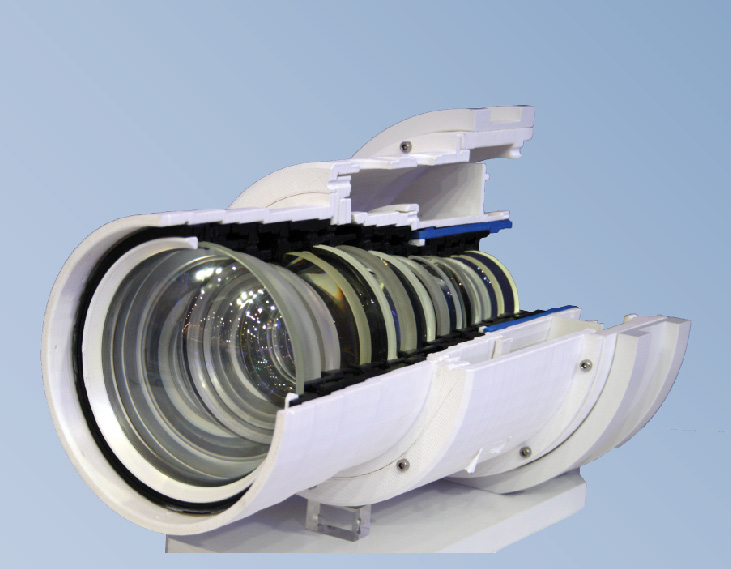

Lens SOVA-5
- Purpose: Wide lens lens for detection of low-orbital space objects at altitudes from 120 to 500 km
- Year of release: 2007
- Guaranteed service life (years): 10 years
- Estimated production / delivery time (months): 9
| Parameter | Value |
|---|---|
| Focal length | 100 mm |
| Working segment | 29 mm |
| Energy concentration in the scattering spot 24 mm | not less than 80% |
| Linear field in image space | 74 mm |
| average transmittance coefficient in the spectral range of 0.45 ... 0.85 μm | not less than 0,7 |
| Angular field in object space | 40º |
| weight | not more than 26 kg |
13 lens width lens
Features:
- 13 lenses with different surface curvature
- wide viewing angle - 40 °
- transmission factor 0.7
