Control Complex of a Large-sized Products
- Purpose: Real time control of large-sized product forms (from 10 m and more).
- Year of release: 2007
- Guaranteed service life (years): 1
- Estimated production / delivery time (months): 12
- Possibility to adapt the product to customer requirements: Yes
| Parameter | Value |
|---|---|
| Measurement range, mm | ± 20 |
| Measurement error, mm | 0,1 |
| Processing speed, measurement / s | 20 |
| Overall dimensions, mm | ⌀ 50 х 40 |
| Weight, gr | 40 |
| Sensors scanning time, s | 0,1 |
| Monitoring speed, thous. reports / s | up to 10 |

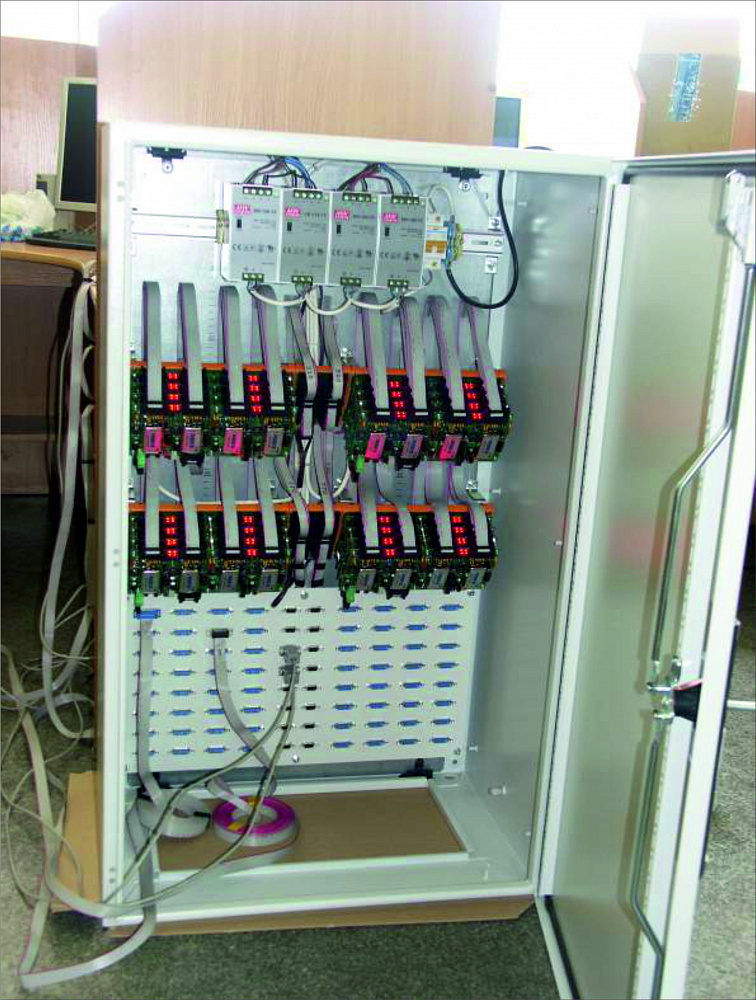

Programmable control complex of large-sized product forms in real time.

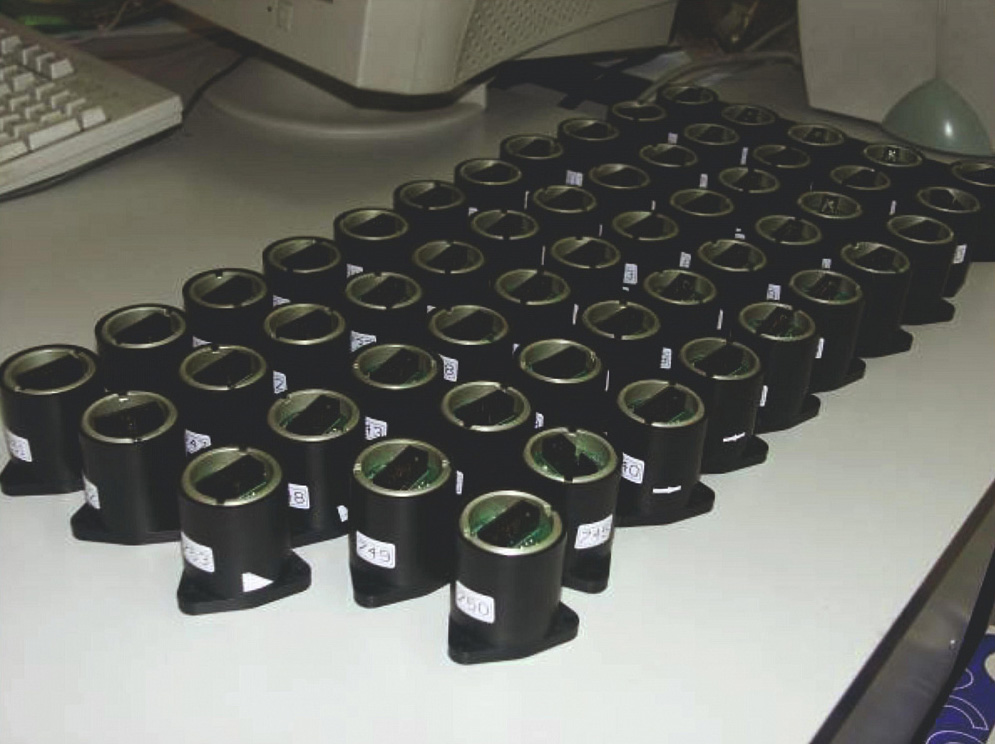

The principle of operation is based on measurement of the product shape deviation from the a predetermined value using a network of compact triangulation distanse sensors, mounted on the stocks near the control points of the object, followed by processing of measurement information.
