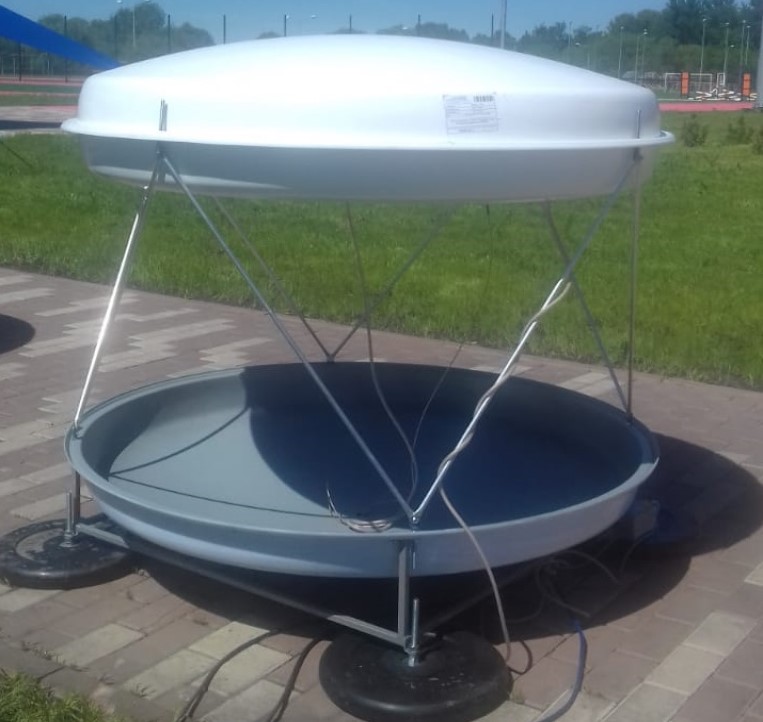

L-band Ground Station for Receiving data from Meteorological Earth Observation Satellites

Purpose: Ground receiving station is intended to recevie data from meteorological Earth observation satellites in low orbits via L-band radio channels.
Year of release: 2018
Guaranteed service life (years): 5
Estimated production / delivery time (months): 5
Flight qualification of the product: No
Possibility to adapt the product to customer requirements: Yes

Parameter	Value
Antenna dish diameter, m	1.2
Frequency band of input signal, MHz	1670 … 1710
Speed of digital data rate, Mdps	0.25 ... 2 (BPSK) 0.5 … 4 (QPSK)
Modulation types	BPSK, QPSK
Noise temperature of the input amplifier, ° K, not more	65
Wind speed, m/s, maximum	Operation - 20 Survival - 30
Mass, kg, maximum	40
Operation temperature range for devices, located outdoor; indoor, °C	-40 ... +50; +10 ... +25
Primary power supply	AC 220 V ±10%, 50/60 Hz, single-phase
Power consumption, WA, maximum	200

Ground receiving station is designed to receive, demodulate, decode, record and process digital images of low resolution, transmitted from meteorological spacecraft in low Earth orbitsМетеор-М №2, NOAA, MetOp, FengYun-3 via L-band radio channels. The Station provides computer disk data file recording.
