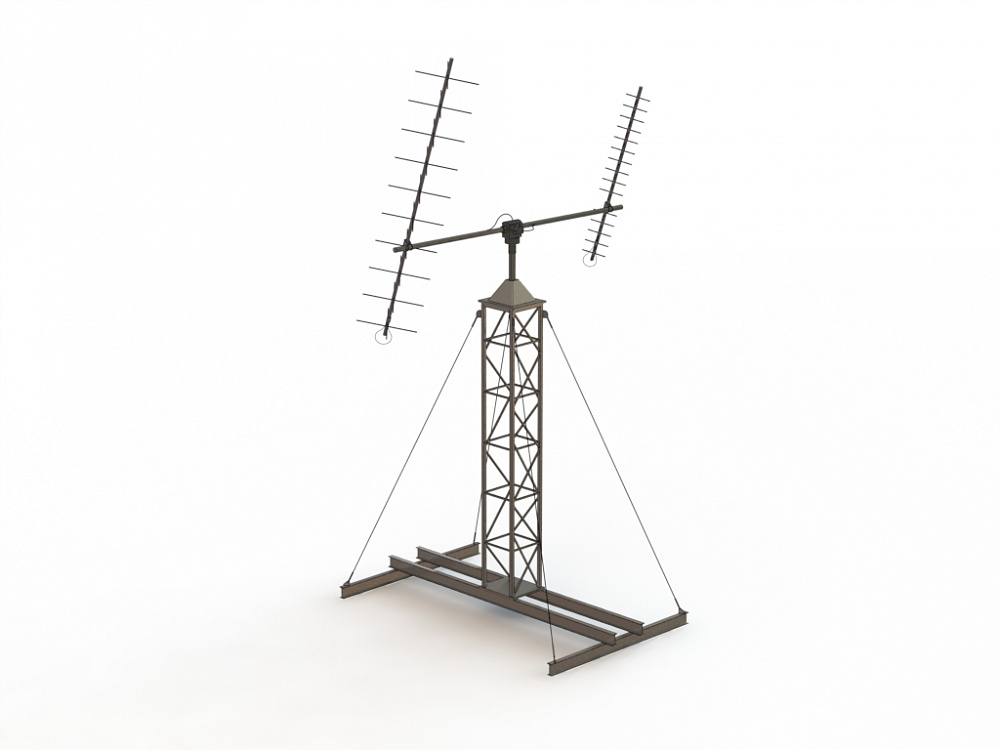

Ground Station
- Purpose: Used to control spacecraft and perform communication sessions.
- Year of release: 2018
- Guaranteed service life (years): 1 year
- Estimated production / delivery time (months): 6
- Flight qualification of the product: Yes
- Possibility to adapt the product to customer requirements: Yes
| Parameter | Value |
|---|---|
| Rotation speed on every axis | 2 deg\с |
| Availability of automated antenna rotation control | yes |
| Radio frequency | 140-150 MHz, 400-450 MHz |
| Antenna gain for transmission and reception path in the frequency range 400-450 MHz | 18 dBi |
| Antenna gain for the transmit and receive path in the 140-150 MHz frequency range | 8 dBi |
| Antennas SWR | no more 1.5 |
| Transmission power at the input of the antenna system 140-150, 400-450 MHz | 20 Wt |
| Reception / transmission rate (bit) | from 9600 to 38400 bit\s |
Ground control station for working with spacecraft.
