Data Receiving and Satellites Controlling Station
- Purpose: Radiosignals receiving and control comands transmitting according to amateur radio communication regulation.
- Year of release: 2018
- Guaranteed service life (years): 1
- Estimated production / delivery time (months): 3
- Flight qualification of the product: No
- Possibility to adapt the product to customer requirements: No
| Parameter | Value |
|---|---|
| The frequency range of the directional antenna, MHz, not narrower | 435...438 |
| The frequency range of the survey antennas, MHz | 136..146 and 435...438 |
| Data speed rate of the survey antennas, bps | 9600 |
| Transmitter output power, W, not less than | 4 |
| Supported Modulation Types | AX.25 |
| Supported transport protocols | FSK |
Ground complex provides two-way communication with small spacecraft.
Features:
- based on technology of software-defined radio;

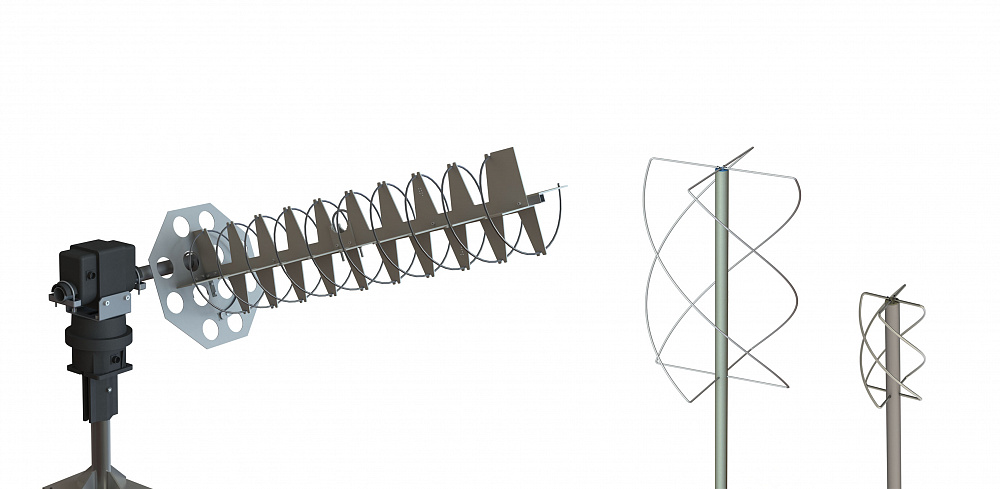

- includes rotating antenna with high gain;
- includes two fixed survey antennas;
- equipped with web-camera for rotating antenna monitoring.
