GNSS Receiver in a Secure Enclosure

Purpose: Mission-critical navigation systems.
Year of release: 2007
Guaranteed service life (years): 3
Estimated production / delivery time (months): 6
Flight qualification of the product: No
Possibility to adapt the product to customer requirements: No

Parameter	Value
WHT	715112 mm
Weight	50 g
Supply voltage	3.3±5% V
Operating temperature range	-40 - +85 C°
Number of channels	16
Frequency range	L1
Offline Accuracy, (GPS+GLONASS, HDOP<4): Plan, CEP	9 m
Offline accuracy, (GPS+GLONASS, HDOP<4): Plan, 2Drms	14 m
Offline Accuracy, (GPS+GLONASS, HDOP<4): Height, rms	25 m
Offline Accuracy, (GPS+GLONASS, HDOP<4): Speed, rms	0,1 m
Offline Accuracy, (GPS+GLONASS, HDOP<4): Time, rms	0,1 μs
Differential accuracy mode: by coordinates, CEP	1 m
Differential accuracy mode: in speed, 2Drms	0.03 m/s
Dynamics: speed	550 m/s
Dynamics: acceleration	2 m/s2
Time to first countdown: Hot start	10 s
Time to first countdown: Cold start	120 s
Time to first countdown: Warm start	30 s
Time to first countdown: Re-enter sync	1 s
1PPS	10 μs
Interfaces	2 ports RS-232E
Interfaces: Exchange rate	900 - 115200 bit/с
Differential corrections	RTCM SC 104 V2.2
Differential Corrections: Exchange Rate	9600 bit/s
Output	Coordinates, time, route, speed, almanacs and ephemerides, raw measuring information
Data formats	ASCII NMEA 0183 v.2.30 binary format
Power consumption (typical)	0.65 W
Backup power, DC	1.5 - 3.3 V
Operating conditions: vibration, frequency	20 - 1000 Hz

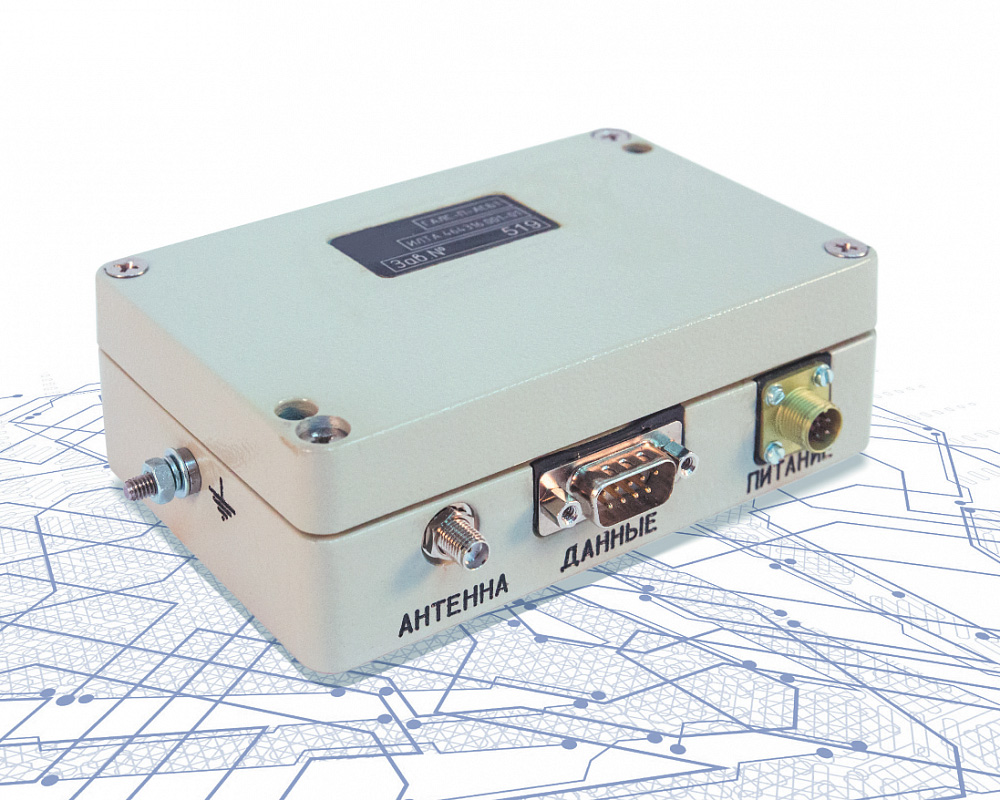

The navigation receiver is designed to determine coordinates, speed and time. Comes in a protected case.
