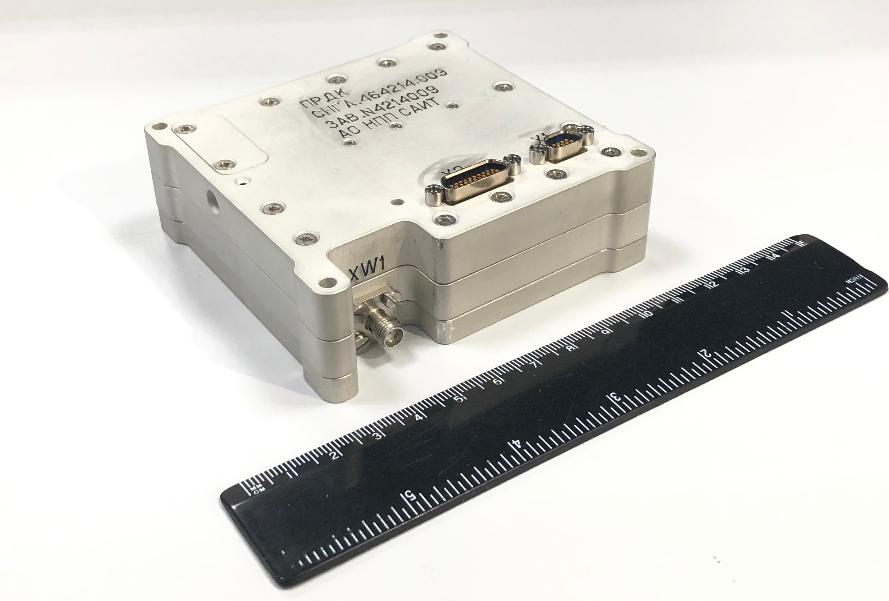

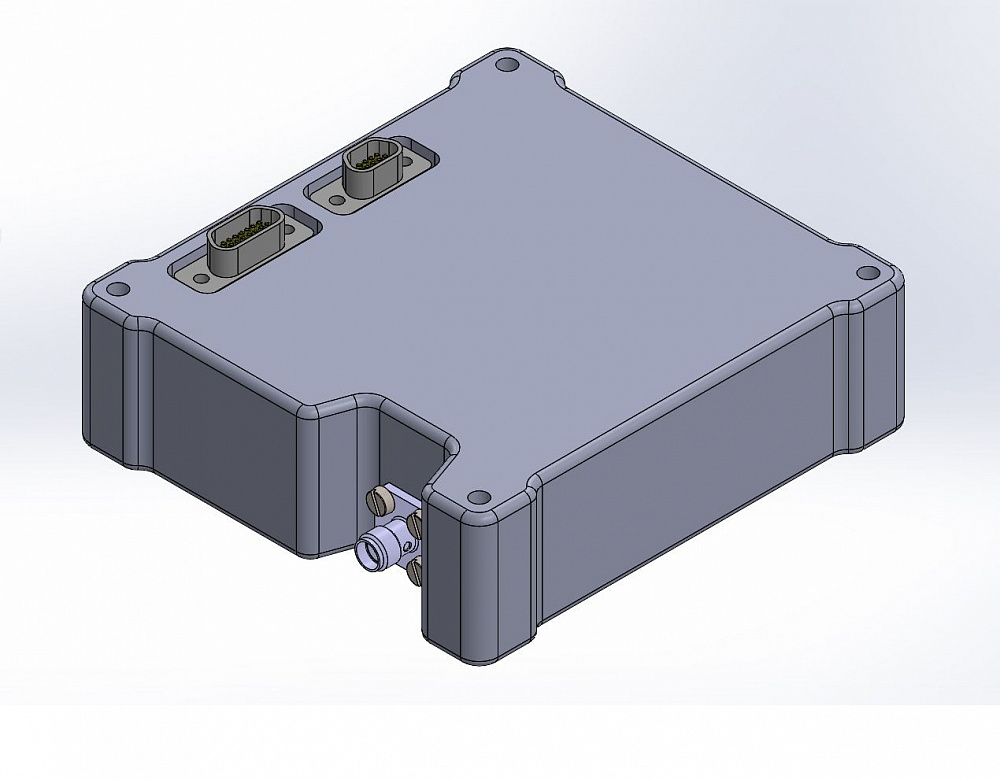

X-band Transmitter for Cubesat
- Purpose: It provides reliable high throughput communication channel from the spacecraft to ground stations.
- Year of release: 2019
- Guaranteed service life (years): 3
- Estimated production / delivery time (months): 12
- Flight qualification of the product: No
- Possibility to adapt the product to customer requirements: Yes
| Parameter | Value |
|---|---|
| Weight, kg | 0,38 |
| Power consumption, W | 22 |
| Throughput | up to 1 Gbps |
| Carrier frequency, GHz | 8.1-8.5 |
| Output power, W | 2,5 |
| Modulation | QPSK, 8PSK, 16APSK |
| Data interface | LVDS |
The Cubesat X-band Transmitter with high throughput up to 1 Gbps.
