Signaling Device
- Purpose: Monitoring the maximum permissible concentration of oil in high-pressure air at the outlet of the compressor station.
- Year of release: 2006
- Guaranteed service life (years): 15
- Estimated production / delivery time (months): 9
- Flight qualification of the product: Нет
- Possibility to adapt the product to customer requirements: Да
| Parameter | Value |
|---|---|
| Maximum permissible oil concentration, no more | 80 mg / m3 |
| Sample Air Pressure Ranges | 20, 40 Mpa |
| Power consumption of the FAM signaling device, no more | 250 W |
| Mass of the FAM signaling device, no more | 44 kg |
| Air flow through the detector no more | 0.6 nm3 / h |
| Oil concentration is controlled automatically in cycles of duration | 10 min |

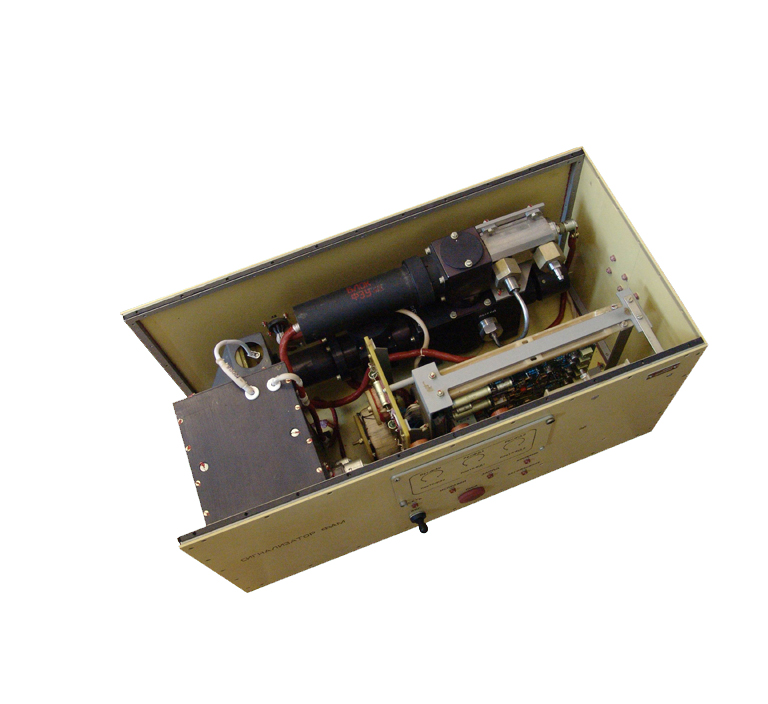

The FAM signaling device includes the following blocks and nodes: optical block, power supply, control unit, PMT block, pulsed light source, flow limiter, set of mounting parts.
Remark
Since 2009, at the Vostochny spaceport as part of the compressor station.
