Launch Complex Equipment

Umbilical Mast

• Purpose: UM is intended for hydraulic, pneumatic and electric lines connexion to the 3-d Stage Module and Payload Assembly and their retracting when remote detaching.
• Year of release: 2008
• Guaranteed service life (years): Specified Service Life- 10 years.
• Estimated production / delivery time (months): 24/5
• Flight qualification of the product: No
• Brief history of flight qualification: No
• Possibility to adapt the product to customer requirements: Yes

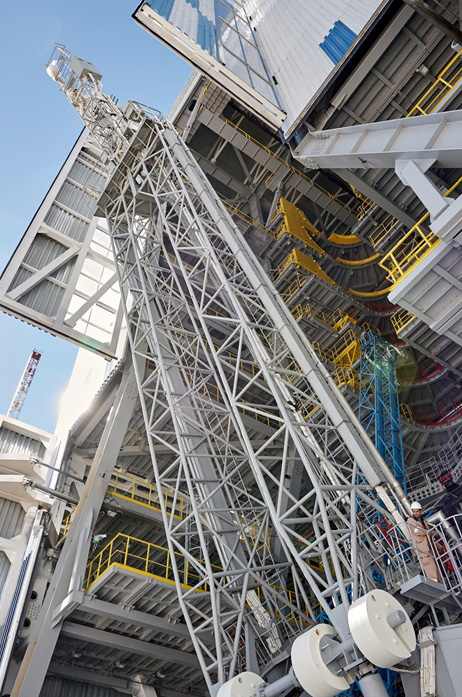

UM is a metal structure, which consists of a basement and a rotary frame (consisting of two frames of different shape). Hydraulic and electric equipment for the frame lifting / lowering is placed inside the basement. Different kind of lines run along the rotary frame. At the top of the frame coupler catching mechanisms are placed.
