Compressed Gases Storage Equipment

• Purpose: Intaking of compressed gases (Air, Nitrogen, Helium) with specified parameters from compressor plants; receiver bottles filling with the compressed gases; compressed gases storing and their delivery with provision of required parameters to Launch and Technical complex systems.
• Year of release: Development start 2002
• Flight qualification of the product: No
• Possibility to adapt the product to customer requirements: Yes

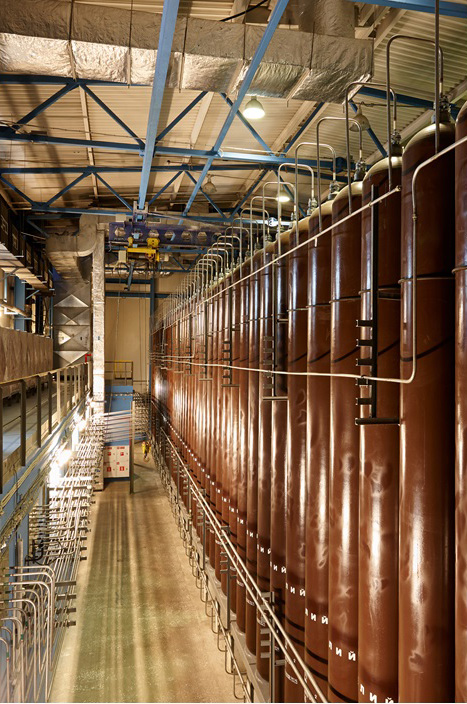

Compressed Gases Storage Equipment (CGSE) includes 210 bottles, incorporated in 6 receiver blocks; nitrogen charging boards; air charging boards; nitrogen supply boards; air supply boards; helium charge and supply board; quality control board; hygrometer; oil indicator; gas pressure monitoring boards; pressure sensor board; pressure reduction boards; control board; nitrogen supply station; air supply station, set of pipelines and valves.
