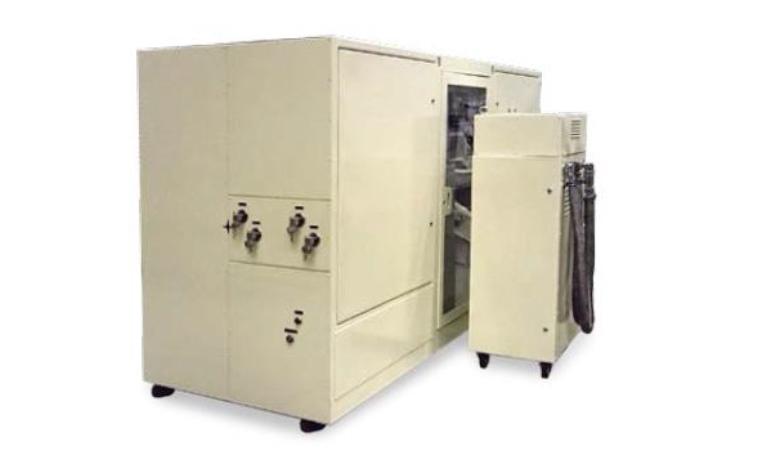

Unit for Temperature Control and Rinsing of the Product's Liquid Fluid Temperature Control system
- Purpose: Supplies of the Product's liquid fluid temperature control system circuit with the fluid of necessary condition; provides subsequit total removal of the fluid from the Product's circuit.
- Year of release: 2014
- Guaranteed service life (years): 10
- Estimated production / delivery time (months): 20
- Flight qualification of the product: No
- Possibility to adapt the product to customer requirements: Yes
| Parameter | Value |
|---|---|
| Consumption | from 11±1 l/min (0,66±0,06 m3/h) to 24±1 l/min (1,44 m3/h) |
| Output pressure | 0,6 to 1,5 MPa (6 to 15 kgf /cm2) |
| temperature accuracy | ±1оС |
| Heat carrier (fluid) | OG-40 «Lena» TU 113-07-02-88 |
The Unit provides necessary flow rate, pressure and temperature set by the operator, in the circuit of the Product's liquid fluid temperature control system. Intelligent operation control system. Self-diagnostic system.
