Pumping Station
- Purpose: Supply of hydraulic fluid (oil) with specified parameters (pressure, filtration degree, flow rate) into closed-loop hydraulic systems indoors or in the environments with high requirements for explosion safety.
- Year of release: 2014
- Guaranteed service life (years): 10
- Estimated production / delivery time (months): 18
- Flight qualification of the product: No
- Possibility to adapt the product to customer requirements: Yes
| Parameter | Value |
|---|---|
| Working fluid | Oil MGE-10A TU 38.401-58-337-2003 Purity class not lower than 10 by GOST 17126-71 |
| Ambient temperature | +5 to +35◦C |
| Nominal pressure | 50 to 400 (kgf /cm2) |
| Pump power consumption at 1000 rpm of electric motor shaft | Up to 35,5 kW |
| Tank capacity | More than 15 l |
| Vibration protection | Yes |

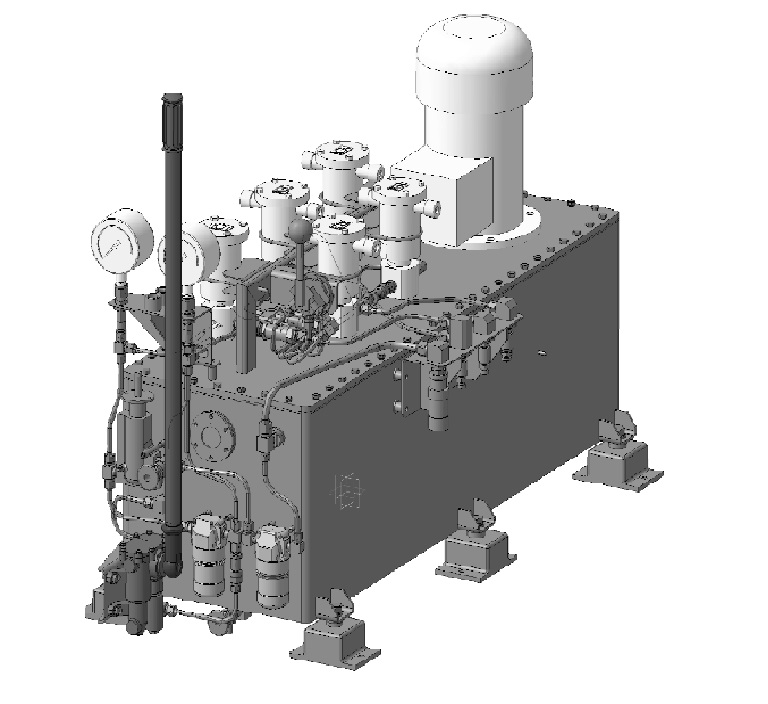

Explosion-proof pumping station with submersible pump.
