"TERRA" complex of space environment simulators
- Purpose: «Terra» space flight simulation complex is delivered on conducting experiments with satellite models such as «OrbiCraft». This complex simulates the existence of the satellite in the Earth’s orbit including such phenomenon as magnetic field and solar radiation.
- Year of release: 2017
- Guaranteed service life (years): 1
- Estimated production / delivery time (months): 3
| Parameter | Value |
|---|---|
| Diameter | no less than 1.2 m |
| Interface | RS-485 |
| Quantity of data receiving ground station simulators in the radio band | no less than 8 |
| Quantity of data receiving ground station simulators in the optical range | no less than 3 |
| Dimensions | 1500*1550*760 mm |
| Max. magnetic field strength | no less than 150 µT |
| Magnetic field homogeneity | Diameter is no less than 0.3 m |
| Beam divergence angle by level 0.5 | no more than 20 triangle |
| Luminous flux on the distance of 1.5 m | no less than 50 000 lm |
| Power supply | 220 V |
«Terra» space flight simulation complex is delivered on conducting experiments with satellite models such as «OrbiCraft».

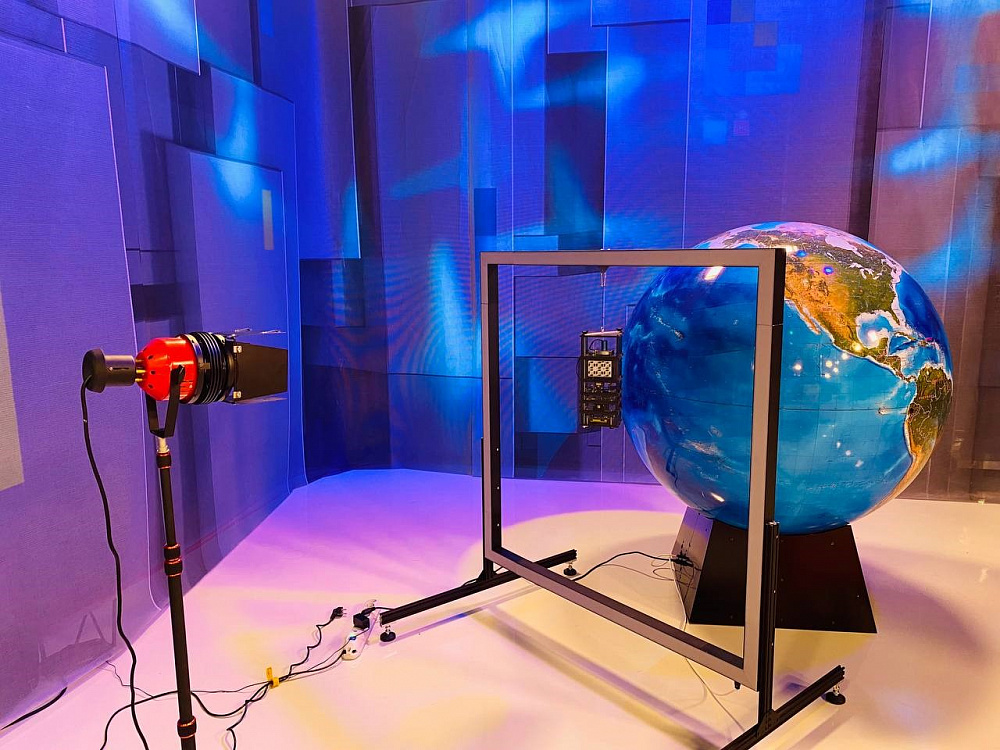

Together with a kit, it allows to simulate a satellite flight in the Earth’s orbit. contains:
- Earth mock-up provides Earth’s geometry and surface appearance. It imitates satellite ground track along equatorial orbit, creates the same conditions and principals for taking pictures of land surface and connection with “Ground control center” by command radio to receive telemetry.
- Sun simulator makes beam similar to solar light in certain conditions.
- Magnetic field simulator – closed square-like solenoid (current frame) makes adjustable magnetic flux through the vertical plane. Current frame is a simplified Uniaxial Earth magnetic field simulator.
RECOMMENDATION: 1 COMPLEX FOR 1 EDUCATIONAL SITE
