Test Bench for Mutual Movement of Spacecraft
- Purpose: Designed to ensure the free movement of the studied objects in the horizontal plane with minimal friction.
- Year of release: 2015
- Guaranteed service life (years): _
- Estimated production / delivery time (months): 9
- Flight qualification of the product: No
- Possibility to adapt the product to customer requirements: Yes
| Parameter | Value |
|---|---|
| Dimensions, mm | 5000х6000х3000 |
| Active area size | 1860х2480 |
| Disk (w/ control system electronics) carrying capacity, kg, up to | 10 |
| Gap between disk and table, mm, up to | 0.5 |
| Working medium | air |
| Power consumtion, kW | 20 |

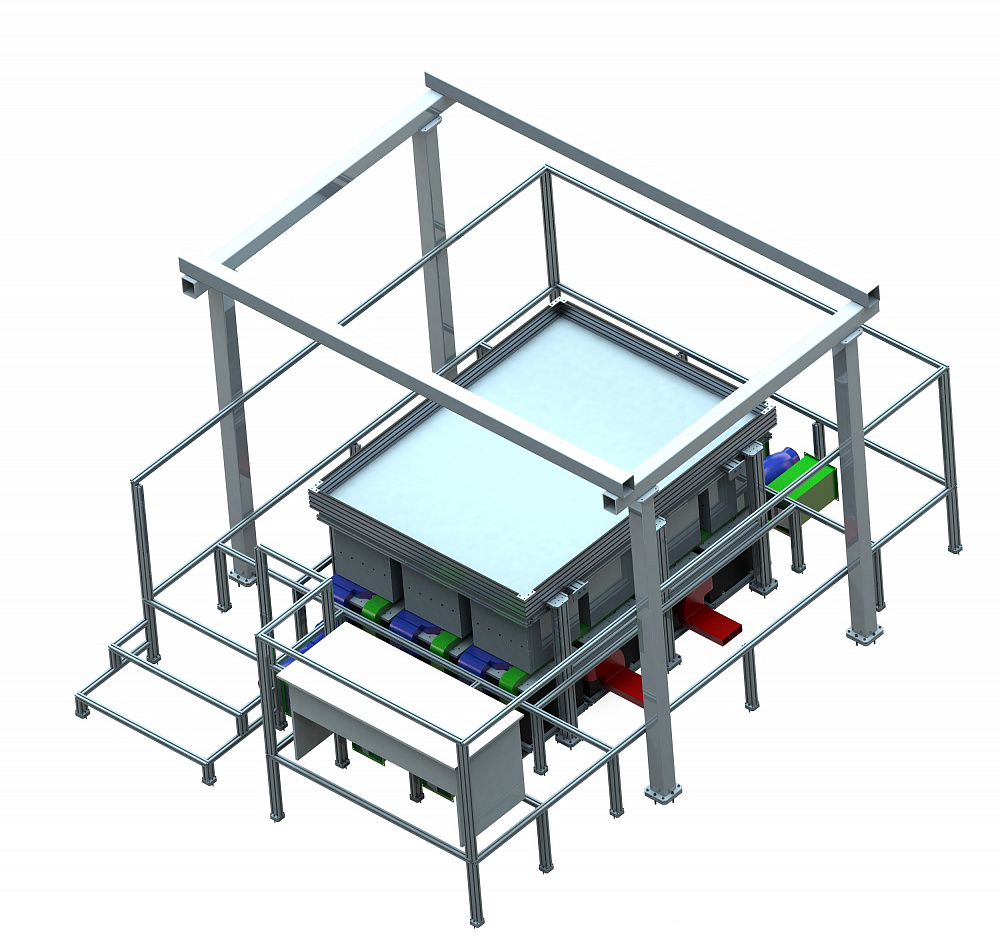

- The aerodynamic table is a precise horizontal surface with a grid of holes, through which air from an external fan is supplied under pressure.
- Air pressure allows to hold a load on an air cushion - one or more mock-ups of moving objects up to 10 kg each - and to define motion parameters with use of autonomous measurements system.
