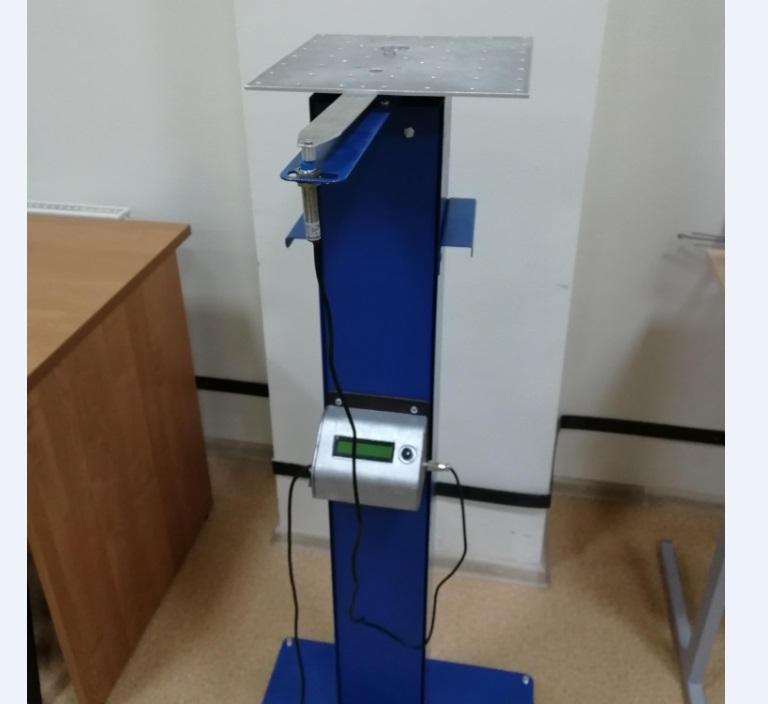

Equipment for determing the center-of-mass position and inertia characteristics of nanosatellites

Purpose: Designed for detrmination of the center-of-mass position and inertia characteristics of nanosatellite.
Year of release: 2017
Guaranteed service life (years): 3 years
Estimated production / delivery time (months): 12
Flight qualification of the product: No
Possibility to adapt the product to customer requirements: Yes

Parameter	Value
Inaccuracy of the center-of-mass position determenig	not more then 1 mm
Accuracy of axial moments of inertia determination	not less then 1.5%

Features:

size of equipment – 500 х 450 х 1300 mm;
maximum dimentions of the objects are 350 х 150 х 150 mm;
supply voltage is 220 V (voltage at the equipment is 5 V);
range of the mass of the objects is 1… 10 kg;
counting of measurments is electronic (display and memory card);
range of operating temperature is 0 … 35˚С;
set of fixing devices of nanosatellite at the equipment not included.
