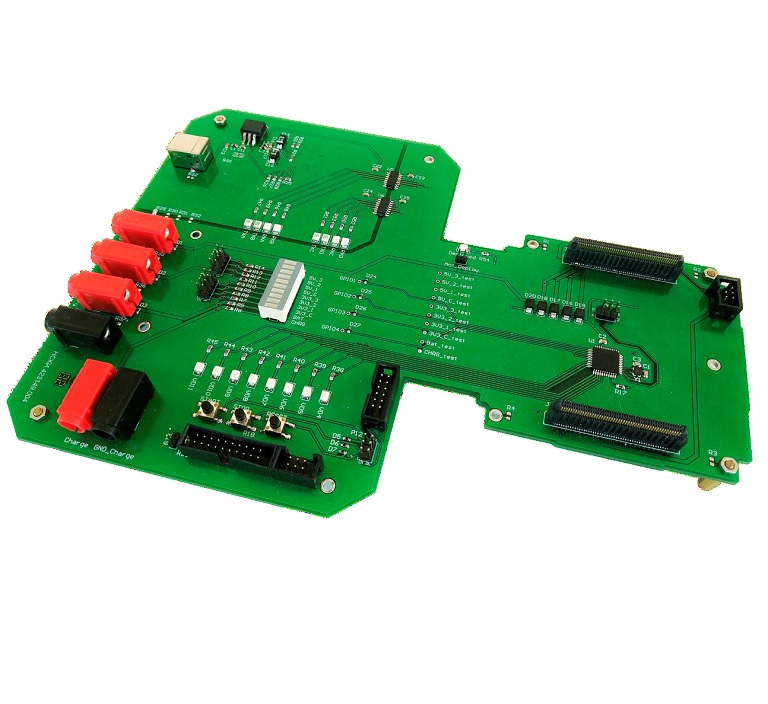

Nanosatellite Debug Board
- Purpose: Board designed to allow debugging of any onboard system or full nanosatellite.
- Year of release: 2016
- Guaranteed service life (years): 1 year
- Estimated production / delivery time (months): 6
- Flight qualification of the product: No
- Possibility to adapt the product to customer requirements: Yes
| Parameter | Value |
|---|---|
| Input voltage 3.3 | 3.3 / 5 V |
| Indication | LED |
| Solar cell channels | 1 |
| Connection to PC | USB |
| Debugger interfaces | JTAG, PDI, UART, I2C |
For debugging used UART interfaces with galvanic isolation between PC and nanosatellite.
Features:
- external power;
- power channel status indication;
- debugger interfaces;
- onboard system emulation;
- terminal interfases.
