Test Bench to Examine Radio-Technical Performance of Antennas
- Purpose: High precision transfer and rotation of the target object in the 3 linear and 3 angle directions of intrinsic frame of reference within the working paths.
- Year of release: 2012
- Guaranteed service life (years): 10
- Estimated production / delivery time (months): 4
- Flight qualification of the product: No
- Possibility to adapt the product to customer requirements: Yes
| Parameter | Value |
|---|---|
| Rotation angle around frame of reference axes range, ° | ±7 |
| Linear motion along frame of reference axes ОХ and OY range, mm | ±100 |
| Linear motion along frame of reference axis ОZ (vertical axis of the mechanism) range, mm | ±25 |
| Angular rotation around frame of reference axes increment, '' | 25 |
| Linear motion along frame of reference axes increment, μm | 10 |
| Angular rotation around frame of reference axes error, '' | ±30 |
| Linear motion along frame of reference axes error, mm | ±0.01 |
| Overall dimensions of the device, mm | diameter 530, height 673 |
| Mass of the mechanism, kg | 21 |

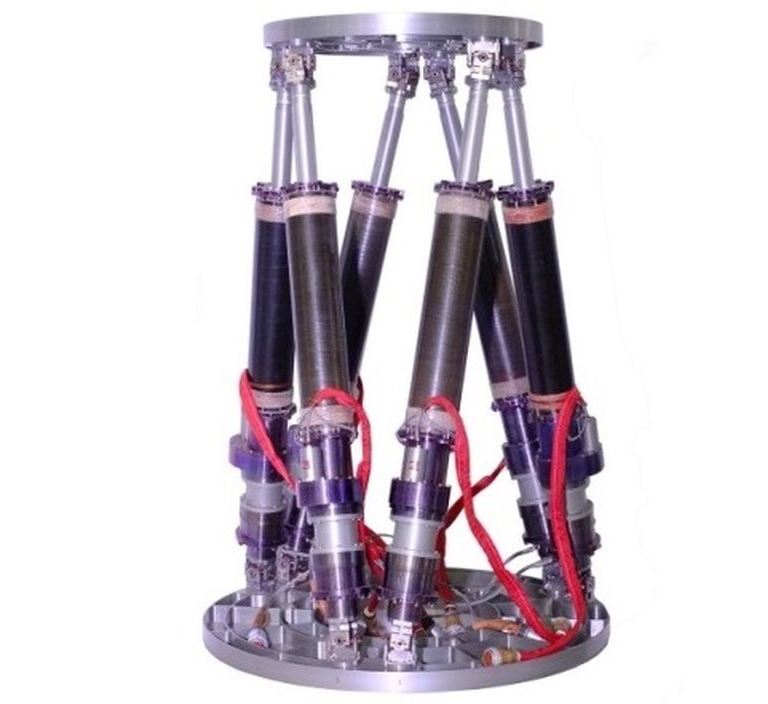

- Component of the testbed for testing antenna radio engineering performance, six-degree-of-freedom mechanism.
Remark:
The mechanism is used in the testbed for testing antenna radio engineering performance in the ground conditions. Development of space version on the base of this solution is available.
