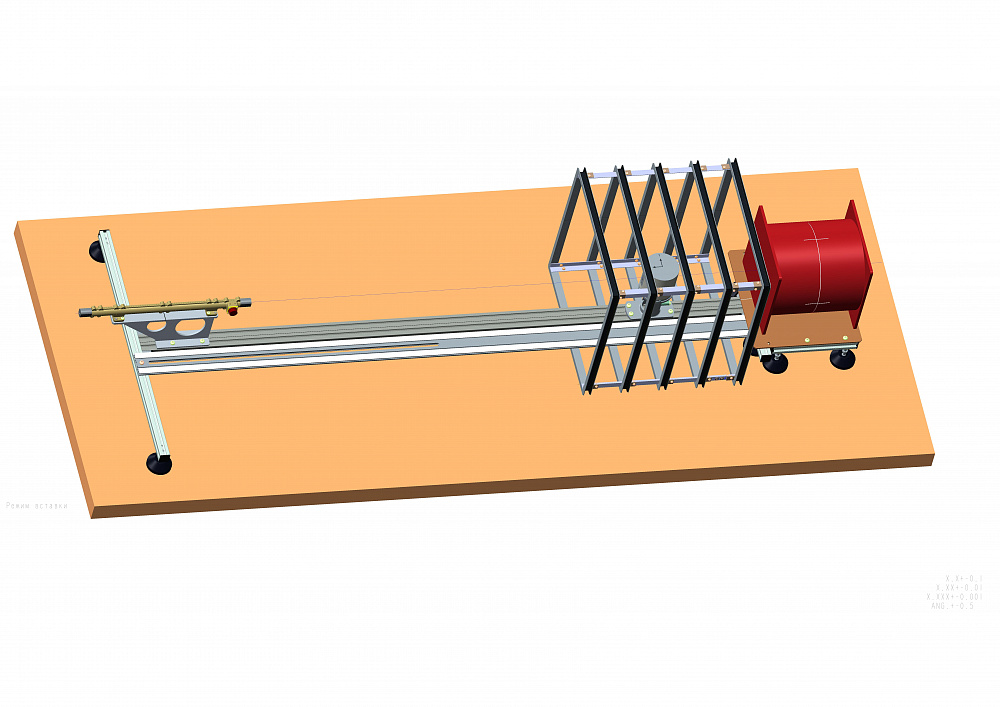

A Set of Stationary Control and Verification Equipment (SSCVE)
- Purpose: To control the induction of magnetic field associated with the dipole magnetic moment generated by the EMU, the value of which is proportional to the current flowing through the windings.
- Year of release: 2017
- Guaranteed service life (years): 3
- Estimated production / delivery time (months): 6
- Brief history of flight qualification: Individual production.
- Possibility to adapt the product to customer requirements: Yes
| Parameter | Value |
|---|---|
| Operating conditions | Normal climatic conditions (NСС) according to GOST 15150-69 |
| SSCVE mass excluding the mass of electrical equipment, power source and a standard measure of the magnetic moment | ≤ 8 kg |
| The range of controlled the dipole magnetic moments | 0,05 - 30 А·m² |
| Controlled residual magnetic moment | ≤ 0,05 А·m² |
| Controlled number of windings | 2 |
| voltage supplied to the controlled product | 0 -32 V |
| Current supplied to the controlled product | 0 - 2 А |
| The direction of the magnetic moment | Да |
| Overall dimensions | 1300 х 570 х 320 mm |
- A set of stationary control and test equipment (SSCTE).
Remark:
Service life 10 years.
