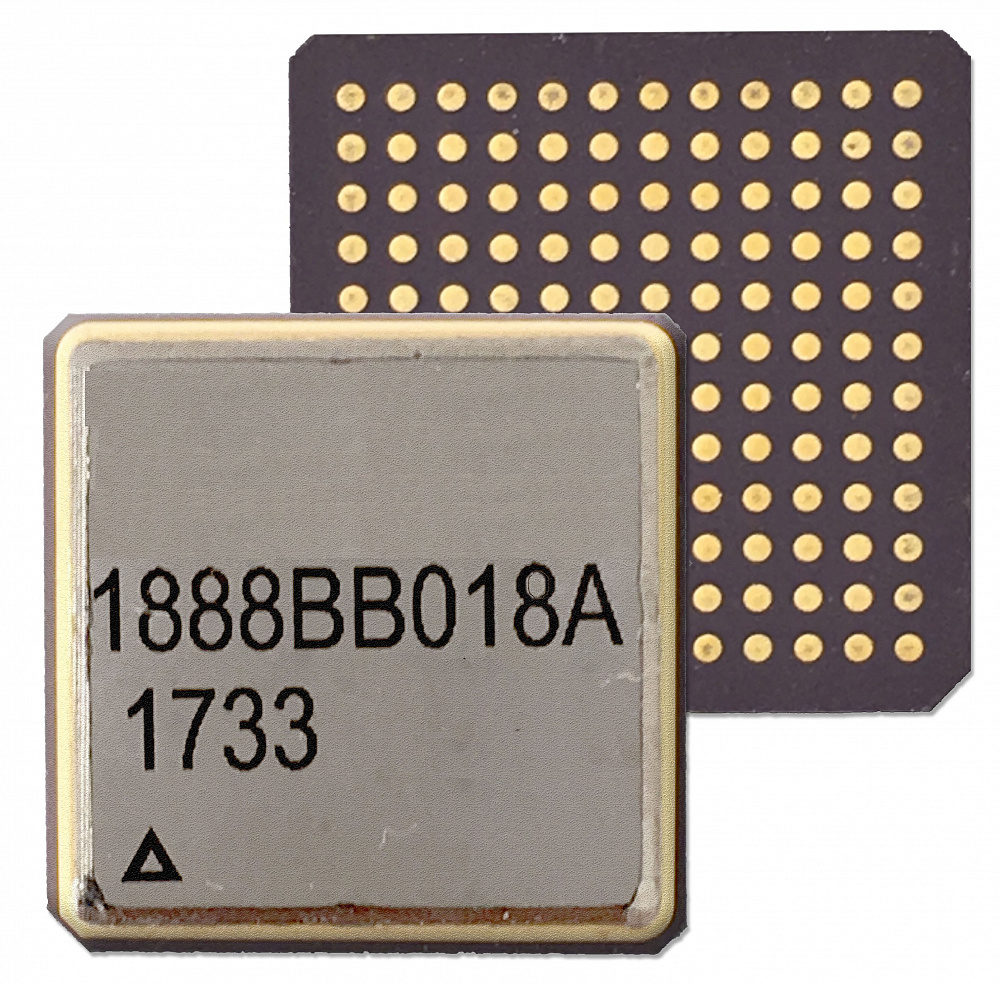

PCI Express Chip 1888 BB 018 A
- Purpose: Expanding the functionality of interface modules and devices by supporting the high-speed PCI Express standard.
| Parameter | Value |
|---|---|
| Type of shell | МК8306-144-1 |
| Supply voltage | I / O buffers – 1.8 V to 3.3 V; cores: 1,25 V; I / O blocks: 1,2 V; clock generation circuits: 1,25 V; level offset circuits and calibration circuits: 3,3 V |
| Dynamic current consumption for the power circuit | UDDD1: 3.5 mA; UDDA2: 15 mA; UDDD2: 320 mA; UDDD3: 30 mA; UDDA1: 85 mA; UDD: 50 mA; |
| Working temperature, °C | -60 +85 |
| Technology | CMOS 130 nm |
| Type of acceptance | 5 |
- The PCI Express physical interface device chip that supports the protocol and electrophysical interface requirements of the PCI Express ™ Base Specification Revision 1.1.
