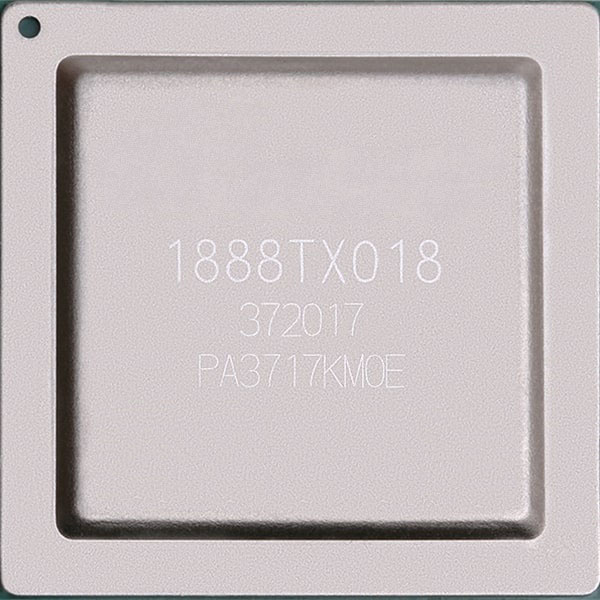

Integrated Circuit 1888 TX 018
- Purpose: - onboard control vehicles; - input, output, processing, encoding/decoding of multimedia (video and audio) information, including on-board equipment; - switching and conversion of video streams of ARINC 818 interfaces in on-board equipment.
| Parameter | Value |
|---|---|
| Type of shell | HFCBGA-1024 |
| Supply voltage | buffers CMOS: 3,3 V; buffers DDR3: 1,5 V; chip cores: 1,0 V; buffers LVDS: 1,8 V |
| Dynamic current consumption | CMOS I / O Buffers: 150 mA (UCC1 = 3.45); memory interface: 100 mA (UCC2 = 1.6 V); chip core: 7500 mA (UCC3 = 1.05 V) |
| Working temperature, °C | -50 +70 |
| Technology | CMOS 28 nm |
| Type of acceptance | 5 |
| Frequency | PowerPC processor cores - 800 MHz; NMC3 processor cores, multimedia nodes, internal memory and high-speed interfaces (DDR3, PCIe2.0, ARINC 818, FibreChannel, SpactWire) - 400 MHz; |
- Integrated microcircuit high-performance energy-efficient multimedia (VLSI MIVEM) provides the functions of a central computer, processing, recognition, encoding, decoding and video output.
- VLSI MIVEM is intended for use as a central processor for devices requiring high performance and high energy efficiency in computing and multimedia information processing systems, and is used in devices such as television signal conversion units for on-board equipment and on-board control vehicles.
