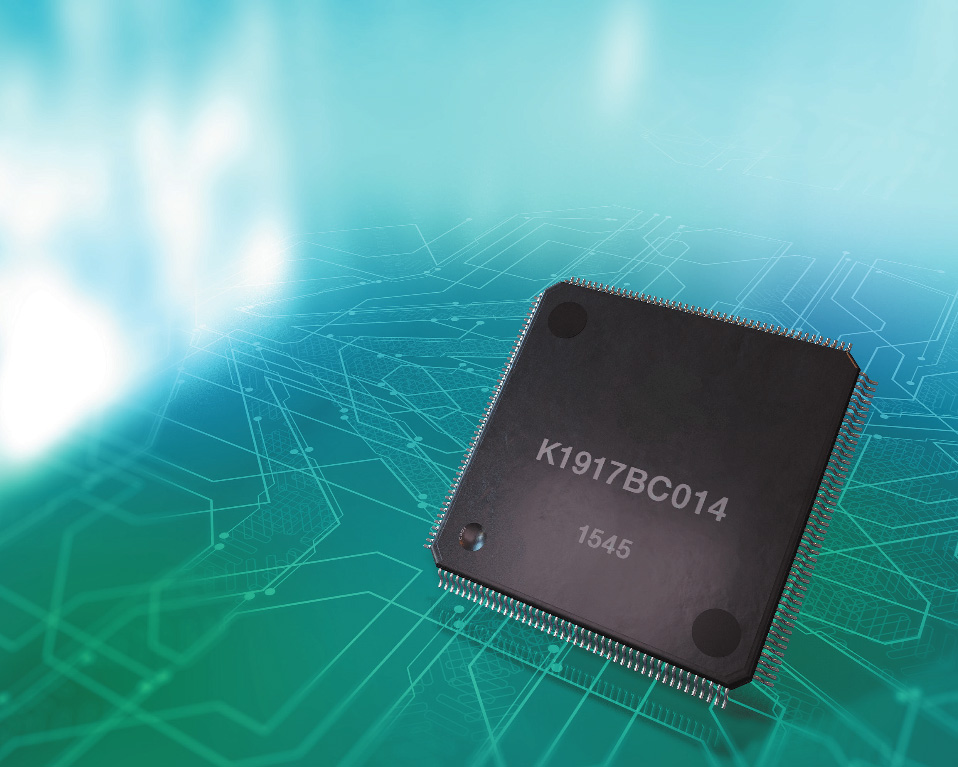

VLCI Receipt/Transmit Center-LSN
- Purpose: LSN, systems with Soft-Define Radio.
- Year of release: 2018
- Guaranteed service life (years): 3
- Estimated production / delivery time (months): 8
- Flight qualification of the product: No
- Possibility to adapt the product to customer requirements: No
| Parameter | Value |
|---|---|
| W*H*T | 20х20х1 mm |
| Weight | 2 g |
| Supply voltage | 1,62…2,0 V |
| Operating temperature range | -40 - +85 C° |
| Case | LQFP176 |
| Power I / O | 2,97…3,63 V |
| Core voltage | 1,0…1,32 V |
| Input Clock Frequency | 20…80 MHz |
| The frequency of the integrated processor | 120 MHz |
| length of a pseudo-random sequence (programmable) | 1000…16777216 bit |
DRT-LSN, together with ORTD-LSN, is intended for use in the equipment of base stations and subscriber terminals of the local navigation system.
Separately, DRT-LSN VLSI can be used as a microcontroller for universal use.
Short description of the chip:
The microcircuit is intended for use as part of the subscriber module of the LAN and should provide:
- primary processing of information from various combinations of user interfaces;
- information transfer to user interfaces;
- positioning of an object by means of transmission of memory bandwidth using CDMA technology;
- transfer of user information from the object;
- receiving synchronizing information from base stations;
- protection of transmitted information;
- the ability to process received / transmitted information in accordance with predefined algorithms.
