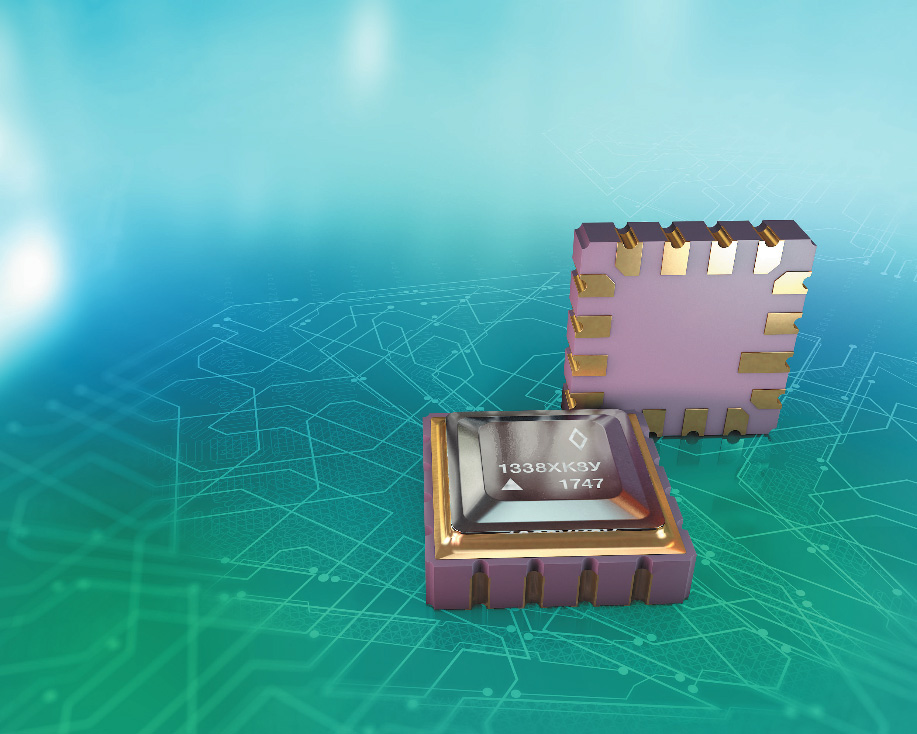

L-band Microwave Discrete Phase Shifter
- Purpose: Construction of radio transceivers.
- Year of release: 2014
- Guaranteed service life (years): 3
- Estimated production / delivery time (months): 10
- Flight qualification of the product: No
- Possibility to adapt the product to customer requirements: No
| Parameter | Value |
|---|---|
| W*H*T | 5*5*1 mm |
| Weight | 2 g |
| Supply voltage | 5±0,15 V |
| Operating temperature range | -60 - +85 C° |
| Digital Supply Voltage | 5±0,15 V |
| Case | 5130.16-АН3 (metal-ceramic) |
| Consumption current | 0,07 А |
| Gear ratio | 5 dB |
| Noise figure | 11 dB |
| Input Compression Point | -17 dBm |
| Operating frequency range | 0,1…1,55 GHz |
| PS discretion, bit | 6 |
| Signal Levels | 0…2,0 V |
| Phase Adjustment Range | 354 C° |
Application of the chip:
- MMIC PS type is designed for civil and special L-band radio equipment of satellite communications and navigation, radar equipment, household appliances.
Short description of the chip:
MMIC phase shifter (PS) controls the phase of the input signals of the L-band. MIS is developed on the basis of silicon-germanium BiKMOS technology.
The basis of the MIS FV circuit design is the vector addition of orthogonal signals.
MMIC has differential inputs and outputs. Phase states are controlled by a parallel 6-bit code supplied to a non-linear current DAC. MMIC PS allows you to set the phase state with high accuracy while maintaining low power consumption.
