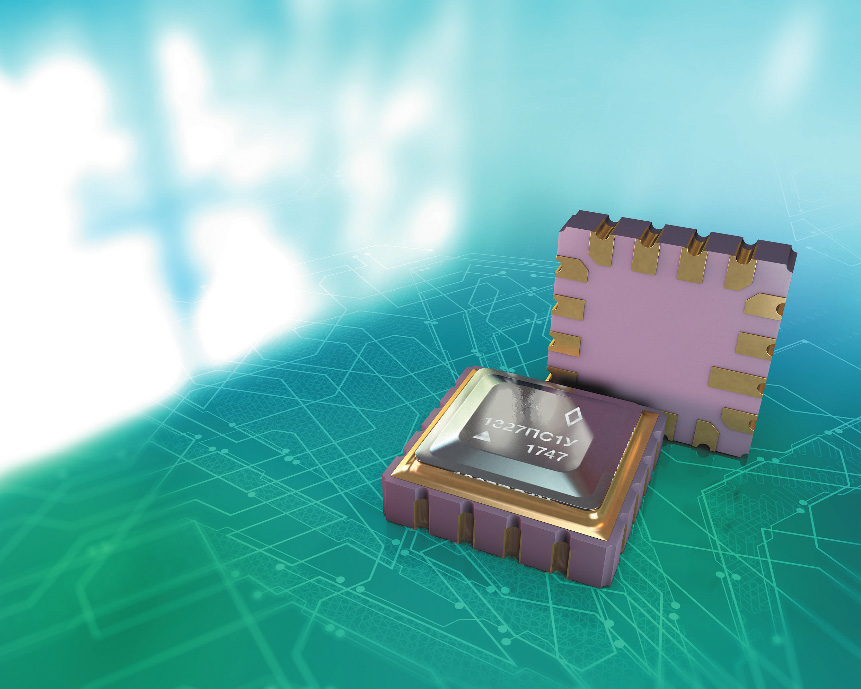

L-band Microwave Double Balanced Mixer
- Purpose: Construction of radio transceivers.
- Year of release: 2014
- Guaranteed service life (years): 3
- Estimated production / delivery time (months): 10
- Flight qualification of the product: No
- Possibility to adapt the product to customer requirements: No
| Parameter | Value |
|---|---|
| W*H*T | 6.35*6.35*1 mm |
| Weight | 1 g |
| Supply voltage | 5.0±0.5 V |
| Operating temperature range | -60 - +85 C° |
| Case | 5130.16.АН3 (Metal and ceramic case) |
| Consumption current | 0.077-0.102 А |
| Gear ratio | 1.5 |
| Noise figure | 13.8 dB |
| Input Compression Point | 7 dBm |
| Input frequency range | 0.05…2.7 GHz |
| Output frequency range | 0.05…2.7 GHz |
| Signal power requirement of heterodyne | -10…0 dBm |
| Logging Level “0” | 1.3 V |
| Logging Level “1” | 2 V |
SiGe (Silicon-germanium) BiKMOS microwave MMIC mixer implements the Gilbert active mixer circuit.
The features of the circuit are:
- the mixer can be included in both receiving and transmitting paths;
- the output of the circuit is implemented as an open collector, so the output can be of different types - unipolar or differential;
- input mixer can work with any type of signal;
- implemented the ability to switch the mixer to sleep mode.
The microcircuits are designed to operate as a mixer of the receiving and transmitting paths in the frequency range up to 2 GHz, with a possible extension of the band to 4 GHz.
