Antenna-feeder System 9.3 m

    • Antenna-feeder System 9.3 m

    Purpose:
    Designed for use in satellite communications earth stations for operation in the C-band.
    Year of release: 2015
    Guaranteed service life (years): 15 years
    Estimated production / delivery time (months): 12
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Reflector diameter 9,3 m
    Receive Frequency Range 3,4- 4,2 GHz
    Transmission Frequency Range 5,7- 6,725 GHz
    Polarization circular
    Receive gain ≥49,3 dB
    Transmission gain ≥53,3 dB
    Ellipticity coefficient ≥0,9
    Working angles in azimuth ± 60°
    Working angles in elevation 5° … 55°
    Working speeds < 0,1°/s

    Description

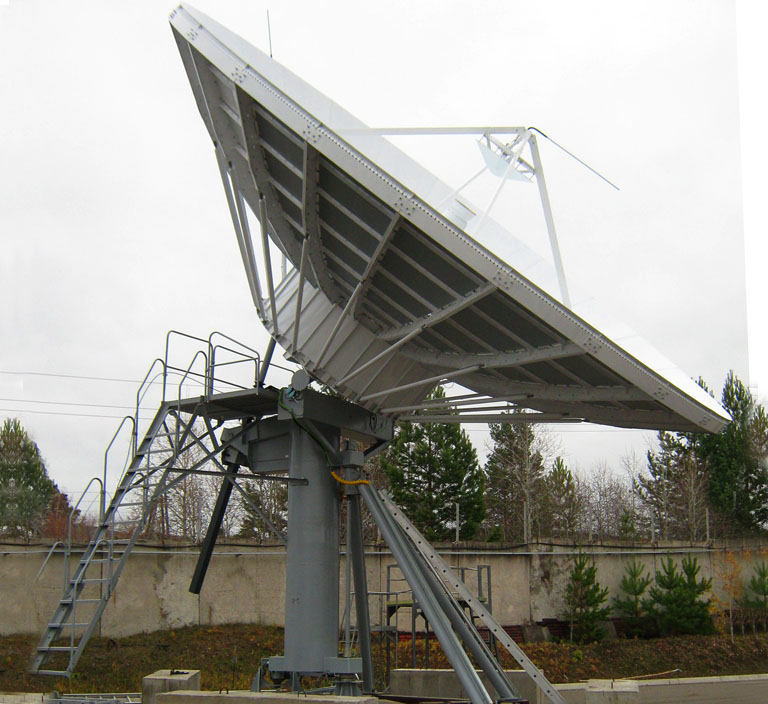

    The transceiver two-mirror antenna system is constructed according to the Cassegrain system, it includes an antenna with a 9.3 m reflector with an irradiating system and a counter-reflector, a slewing ring with electromechanical drives. The structure does not
    ... The transceiver two-mirror antenna system is constructed according to the Cassegrain system, it includes an antenna with a 9.3 m reflector with an irradiating system and a counter-reflector, a slewing ring with electromechanical drives.
    The structure does not include radio receivers and radio transmitting devices.
    Read more...
