Ground Antenna System NAS 11-14-2.4

    • Ground Antenna System NAS 11-14-2.4

    Purpose:
    Designed for use as part of earth stations in satellite communications Ku-band.
    Year of release: 2006
    Guaranteed service life (years): 15 years
    Estimated production / delivery time (months): 9
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Reflector diameter 2,4 m
    Receive Frequency Range 10,95-11,7 GHz
    Transmission Frequency Range 14,0-14,5 GHz
    Polarization linear
    Receive gain ≥47,0 dB
    Transmission gain ≥48,7 dB
    Cross polarization interchange ≥30 dB
    Working angles in azimuth ± 180°
    Working angles in elevation 3° … 49°

    Description

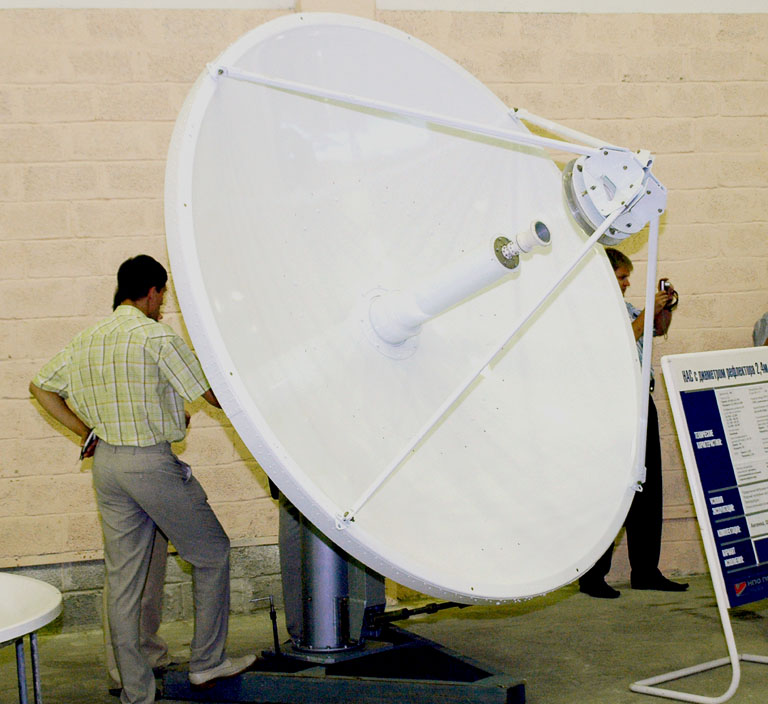

    The transceiver two-mirror antenna system is built on the Cassegrain system, includes an antenna with a 2.4 m reflector with an irradiating system and a counter-reflector, and a slewing gear with manual drives. The structure does not include radio receivers a
    ... The transceiver two-mirror antenna system is built on the Cassegrain system, includes an antenna with a 2.4 m reflector with an irradiating system and a counter-reflector, and a slewing gear with manual drives.
    The structure does not include radio receivers and radio transmitting devices.
