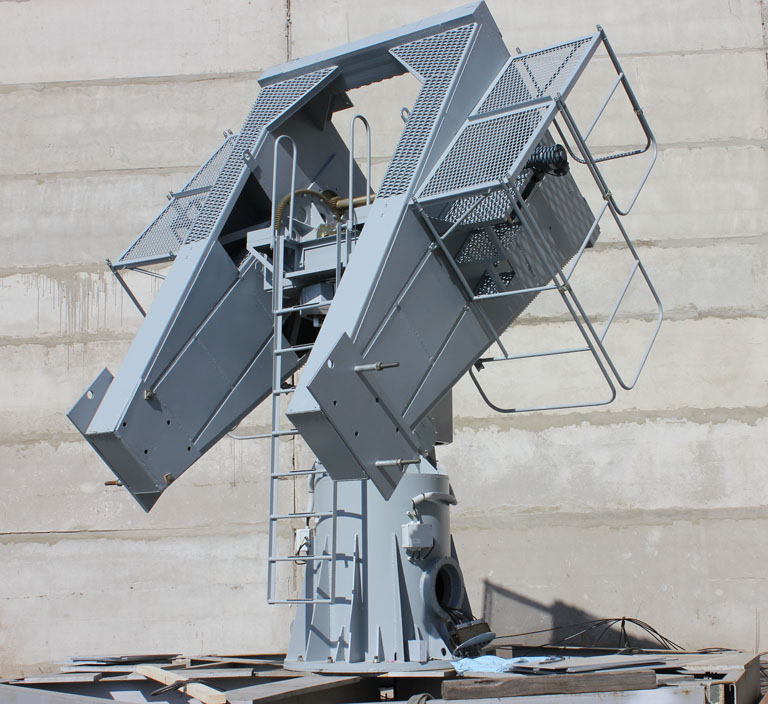

Support-rotary Device 2

    • Support-rotary Device 2

    Purpose:
    For use in antenna systems with a mirror size of up to 6 m in diameter.
    Year of release: 2014
    Guaranteed service life (years): 10 years
    Estimated production / delivery time (months): 12
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Working angles in azimuth ± 270°
    Working angles by elevation 0° … 180°
    Working angles by tilt axis ± 14°
    Azimuth operating speed ≤ 6,0°/s
    Elevation working speed ≤ 6,0°/s
    Tilt working speed ≤ 1,5°/c
    The mass of the antenna and the equipment installed on the OPU < 1500,0 kg

    Description

    Three-axis full-swing slewing ring with azimuthal elevation drive system and additional tilt axis.
