Transportable Ground Station

Purpose:
Designed to work in Ku-band trunks used in the Luch MSRS.
Year of release: 2012
Guaranteed service life (years): 10 years
Estimated production / delivery time (months): 18
Possibility to adapt the product to customer requirements: Yes


Parameter Value
Reflector diameter 7,0 m
Receive Frequency Range 10,7-12,75; 13,5-13,6 GHz
Transmission Frequency Range 14,6-14,7; 15,1-15,4 GHz
Polarization circular
Q factor ≥30,0 dB/K
EIRP ≥65 dBW
Working angles in azimuth ± 90°
Working angles in elevation 0° … 50°
Working speeds < 0,12°/s

Description

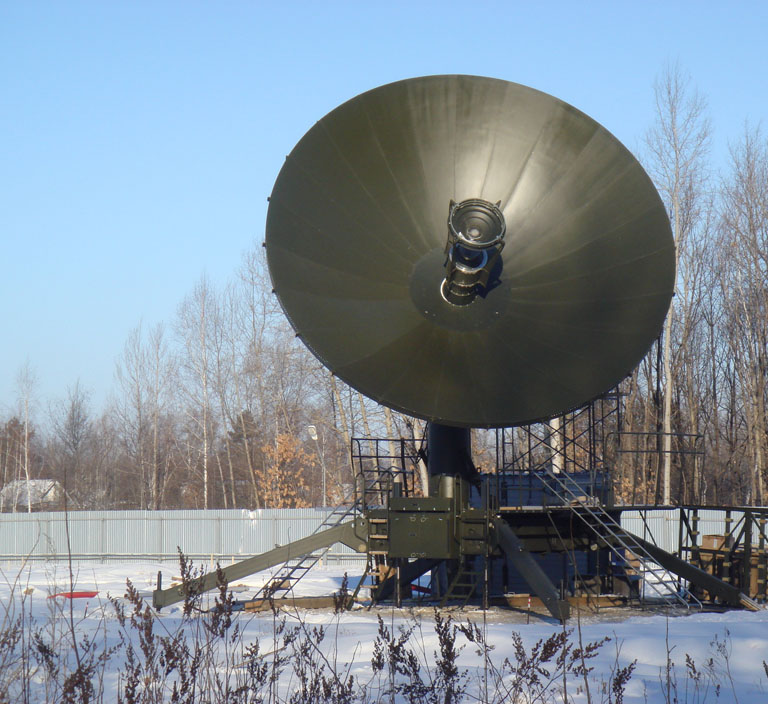

The station includes an antenna system with a reflector of 7.2 m Ku-band. The design of the reflector is collapsible. The structure includes an antenna on a folding slewing ring, a thermal container with a guidance system and channel-forming equipment.
