Photomultiplier Tube 1

    • Photomultiplier Tube 1

    Purpose:
    Registration of pulse signals within visible and near IR ranges for multispectral research.
    Year of release: 2005
    Guaranteed service life (years): 4
    Estimated production / delivery time (months): 3
    Flight qualification of the product: No
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Photocathode diameter 10 mm
    Device diameter 22 mm
    Length 67 mm
    Spectral response 260 ÷ 750 nm
    Photocathode luminous sensitivity ≥80 μA/lm
    Dark current ≤5 nA
    Nominal supply voltage at anode luminous sensitivity of 100 A/lm ≤2200 V
    Pulse rise time ≤1,5 ns
    Photocathode SbKNaCs

    Description

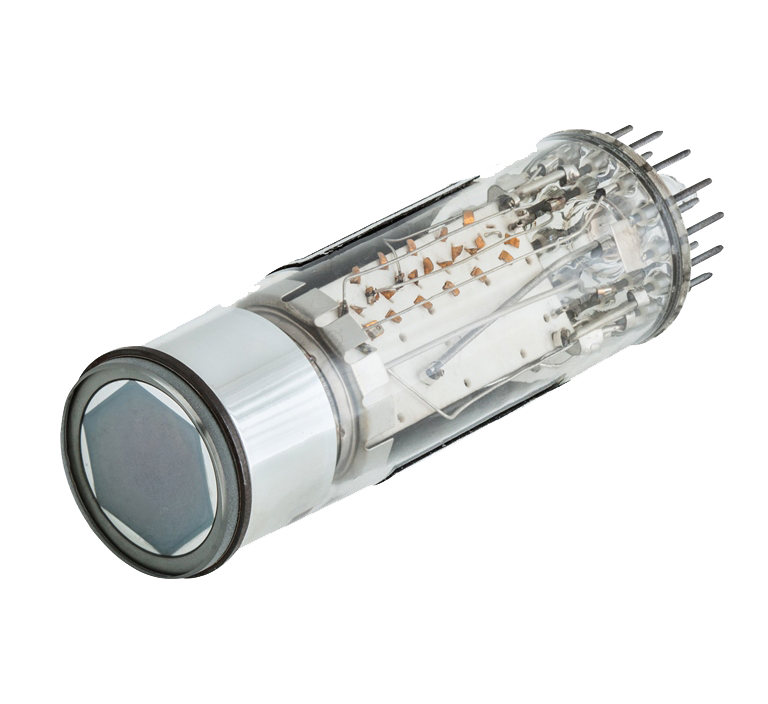

    PMT-186 (PMT-186-1) has SbKNaCs photocathode and linear 14-dynode multiplication system. PMT-186-1 also has two pre-photocathode grids before the first dynode, it can work in a controlled mode.
