Signaling Device

    • Signaling Device

    Purpose:
    Monitoring the maximum permissible concentration of oil in high-pressure air at the outlet of the compressor station.
    Year of release: 2006
    Guaranteed service life (years): 15
    Estimated production / delivery time (months): 9
    Flight qualification of the product: Нет
    Possibility to adapt the product to customer requirements: Да
    Submit application


    Parameter Value
    Maximum permissible oil concentration, no more 80 mg / m3
    Sample Air Pressure Ranges 20, 40 Mpa
    Power consumption of the FAM signaling device, no more 250 W
    Mass of the FAM signaling device, no more 44 kg
    Air flow through the detector no more 0.6 nm^3 / h
    Oil concentration is controlled automatically in cycles of duration 10 min

    Description

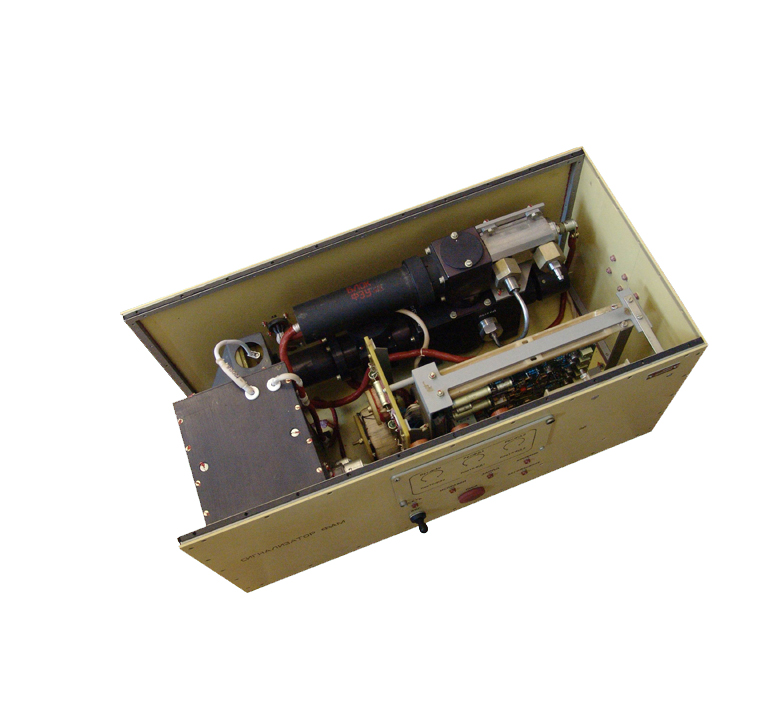

    The FAM signaling device includes the following blocks and nodes: optical block, power supply, control unit, PMT block, pulsed light source, flow limiter, set of mounting parts.

    Remark

    Since 2009, at the Vostochny spaceport as part of the compressor station.
