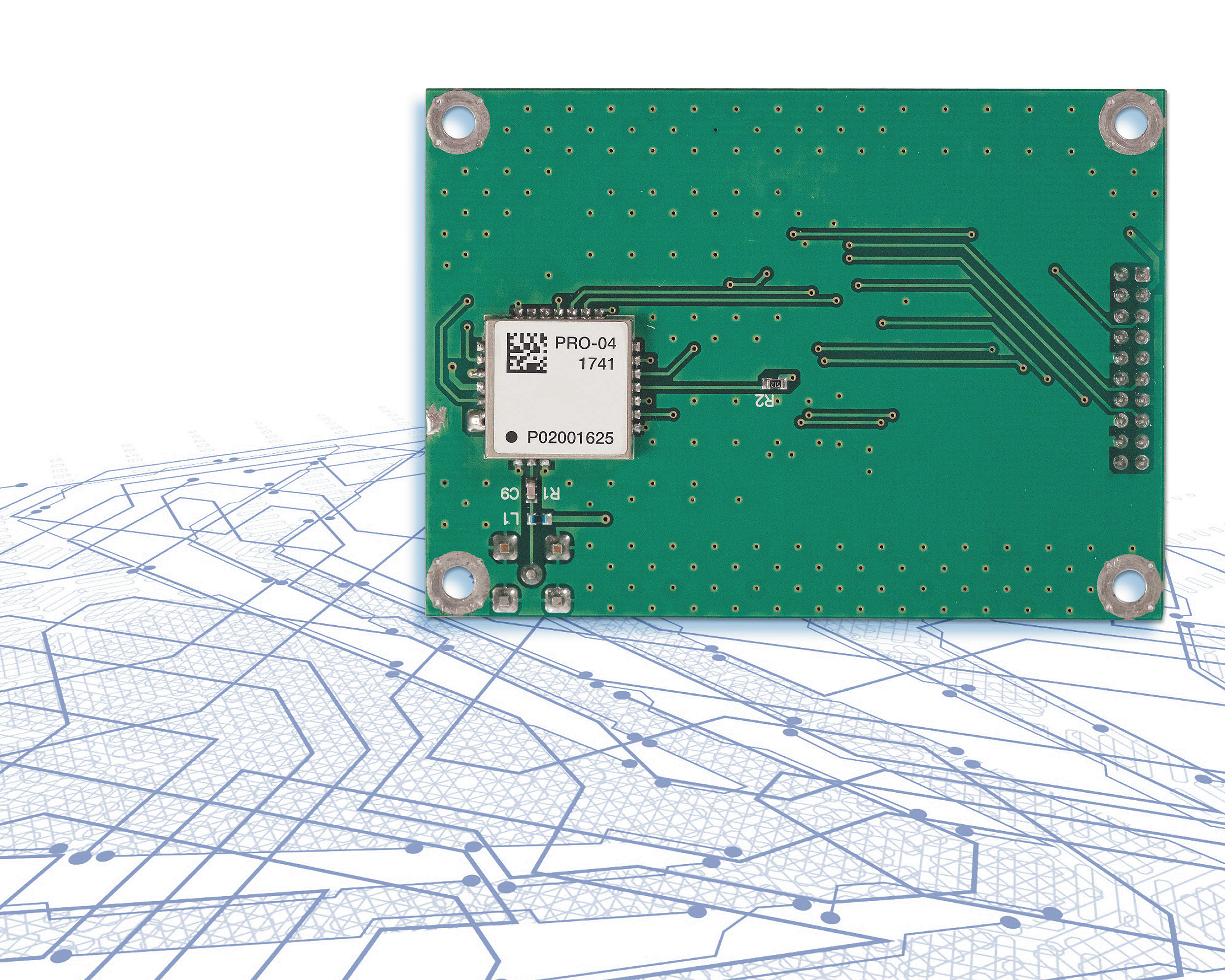

On-board GNSS Receiver with Interface Outputs

    • On-board GNSS Receiver with Interface Outputs

    Purpose:
    Navigation and communications equipment.
    Year of release: 2017
    Guaranteed service life (years): 3
    Estimated production / delivery time (months): 7
    Flight qualification of the product: No
    Possibility to adapt the product to customer requirements: No
    Submit application


    Parameter Value
    W*H*T 71x51x12 mm
    Weight 10 g
    Supply voltage 3,3±5% V
    Operating temperature range -40 - +85 C°
    Number of channels 44
    Frequency range L1 GPS C/A, L1 GLONASS СТ, GALILEO E1B, E1C SBAS L1
    Offline Accuracy,(GPS+GLONASS, HDOP<4):Plan, 2Drms 2,5 m
    Offline Accuracy, (GPS+GLONASS, HDOP<4):Height, rms 4 m
    Offline Accuracy,(GPS+GLONASS, HDOP<4):Speed, rms 0,03 м
    Differential accuracy mode:by coordinates,CEP 1,5 m
    Dynamics: speed 515 m/s
    Dynamics: Acceleration 3 m/s2
    Time to first countdown:Hot start 2 s
    Time to first countdown:Cold start 27 s
    Time to first countdown:Warm start 25 s
    Time to first countdown:Re-enter sync 1 s
    1PPS 0.03
    Interfaces 2 ports RS-232, LVCMOS
    Output Coordinates, time, course, speed, almanacs and ephemeris, raw measurement information
    Data formats NMEA 0183 v 4.10 binary RTCM SC-104
    Power I / O 1,7…3,6 V
    Battery power 1,6…3,7 V
    Consumption - Active, Detection 0,13 W
    Consumption - Active, Tracking 0,07 W
    Power Consumption Pulse Mode 0,015 W
    Rate of data output 1, 2, 5, 10 Hz
    Maximum height 18000 m
    Sensitivity - Detection, Hot Start -147 dBmW
    Sensitivity - Detection, Cold Start -155 dBmW

    Description

    Structurally available in 4 versions: - ILTA.464316.006; antenna power - internal; interface - RS-232 EIA - ILTA.464316.006-01; antenna power - internal; interface - RS-232 LVCMOS - ILTA.464316.006-02; antenna power - external; interface - RS-232 EIA - ILT
    ... Structurally available in 4 versions:
    - ILTA.464316.006; antenna power - internal; interface - RS-232 EIA
    - ILTA.464316.006-01; antenna power - internal; interface - RS-232 LVCMOS
    - ILTA.464316.006-02; antenna power - external; interface - RS-232 EIA
    - ILTA.464316.006-03; antenna power - external; interface - RS-232 LVCMOS
    Read more...
