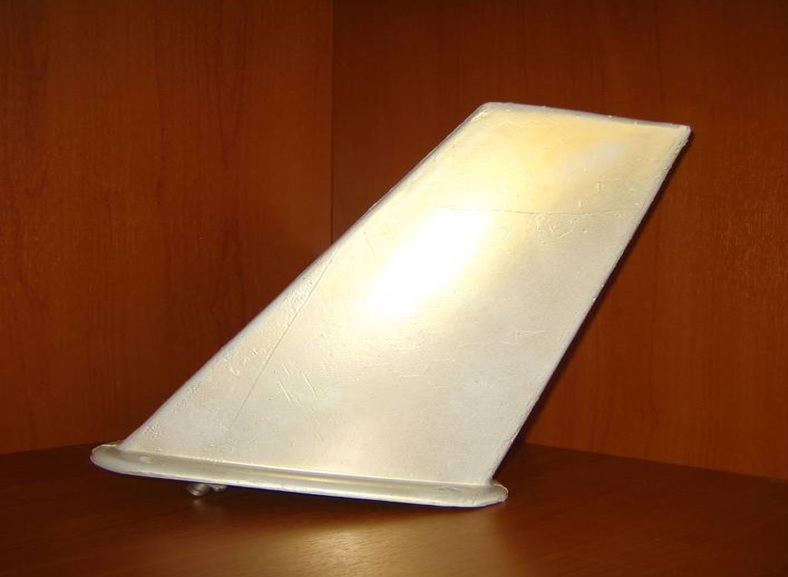

Antenna ANT-406VA

Purpose:
As part of Cospas-Sarsat Aviation Radiobeacons. Work through space navigation systems (SNS).
Year of release: 2011
Guaranteed service life (years): 3
Estimated production / delivery time (months): 3
Flight qualification of the product: No
Possibility to adapt the product to customer requirements: Yes


Parameter Value
Frequency Range, MHz 121,45-121,55 242,9-243,1 406,0-406,1
Output VSWR in the frequency range 1.5
Gain, dB: from 0 to -10 on 121,45-121,55 and 242,9-243,1 from -3 to +4 on 406,0-406,1
LNA noise ratio, dB: -
dimensions 240x238,34x60
Supply voltage -
Consumption current, mA, no more -
Operating temperature, ˚С от -40 до +70
Weight according to technical specifications, kg 0.7
Letter О1

Description

As part of Aircraft antenna.
