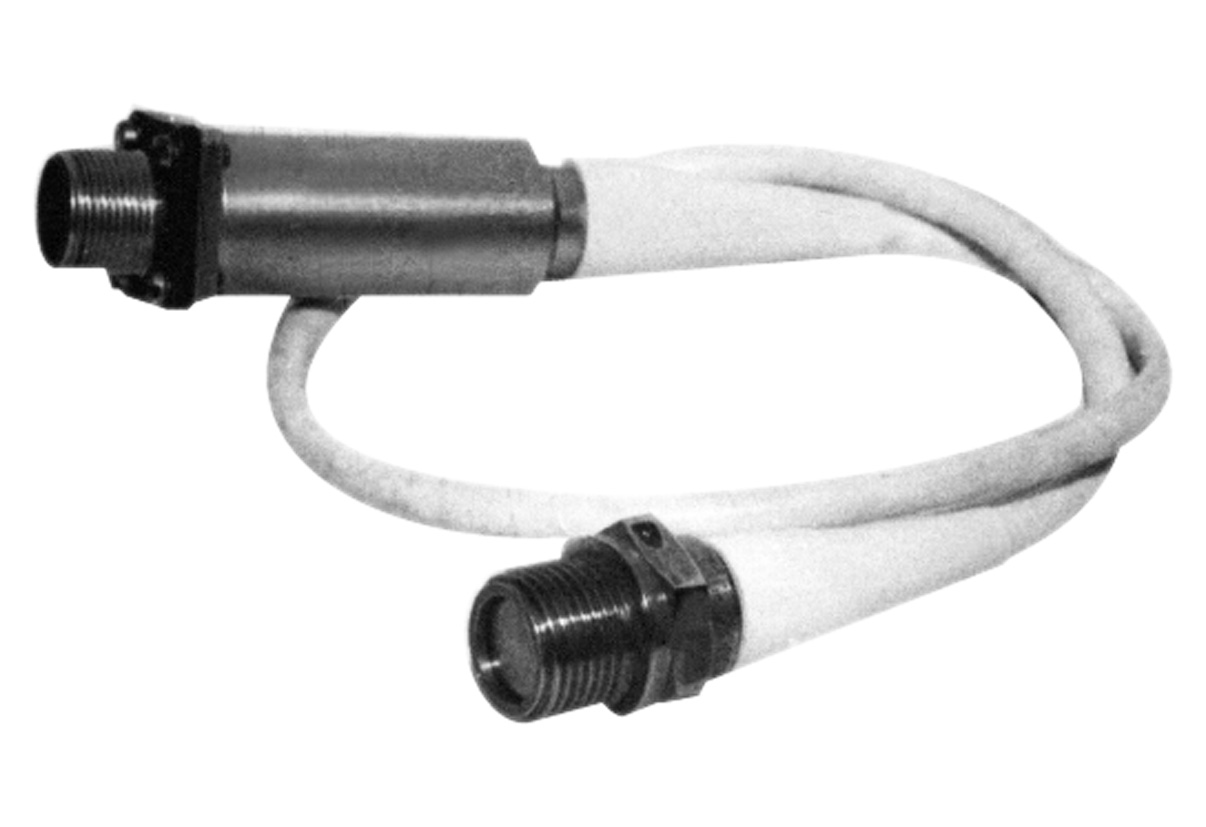

DHS 517 Pressure Converter

Purpose:
Measurement of sound pressure of non-aggressive gaseous media acting on structural elements of rocket and space technology at the stage of removal. Works with a charge amplifier.
Estimated production / delivery time (months): 6
Flight qualification of the product: Yes


Parameter Value
Range of measurements of sound pressure, dB 125-185
Frequency range, Hz 3-4000
Conversion coefficient, μV / Pa 50±30
Error, dB ±1,0
Weight, kg 0,2

Description

Features: - high reliability; - the presence of vibration compensation. It is made according to the "Regulation 98". Version: piezoelectric transducer, consisting of a sensor installed in the housing, a flexible cable and a connector. Explosion protect
... Features:
- high reliability;
- the presence of vibration compensation.
It is made according to the "Regulation 98".
Version: piezoelectric transducer, consisting of a sensor installed in the housing, a flexible cable and a connector. Explosion protection type - "Intrinsically safe electrical circuit" - is provided by an intermediate converter.

Read more...
