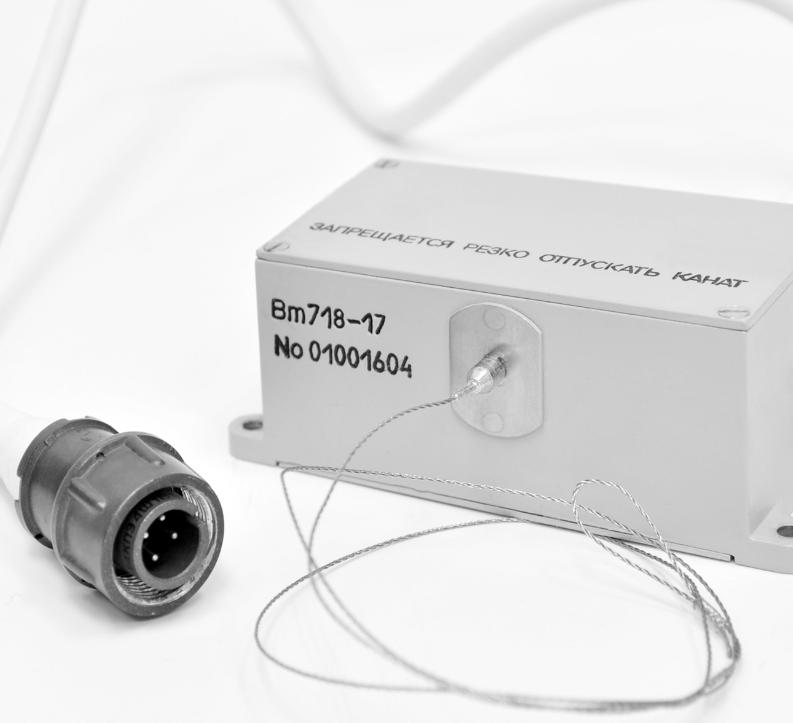

Primary Linear Displacement Transducer Vt 718

    • Primary Linear Displacement Transducer Vt 718

    Purpose:
    Measurement of linear displacements of objects in rocket and space technology product control systems.
    Estimated production / delivery time (months): 6
    Flight qualification of the product: Yes
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Range of measurements, mm 0-16; 0-22; 0-30; 0-45; 0-60; 0-90; 0-125; 0-180;0-250; 0-350; 0-500;0-700; 0-750
    Linear speed, m / s(with acceleration not more than 5 m / s2) 0,08-3,0
    Error,%, not more 2
    Output signal, V 0-6
    Weight, kg, not more 0.3

    Description

    Features: - high reliability under the influence of vibration, shock, temperature, high humidity; - ability to withstand short-term temperatures up to 125 ° C. It is made according to "Regulation 98". Exception: potentiometric transducer. The connection
    ... Features:
    - high reliability under the influence of vibration, shock, temperature, high humidity;
    - ability to withstand short-term temperatures up to 125 ° C.
    It is made according to "Regulation 98".
    Exception: potentiometric transducer. The connection between the measurement object and the transducer is carried out using a rope.
    Read more...
