L-band Microwave LNA

    • L-band Microwave LNA

    Purpose:
    Construction of radio transceivers.
    Year of release: 2014
    Guaranteed service life (years): 3
    Estimated production / delivery time (months): 10
    Flight qualification of the product: No
    Possibility to adapt the product to customer requirements: No
    Submit application


    Parameter Value
    W*H*T 5*5*1 mm
    Weight 2 g
    Supply voltage 3±0,3 V
    Operating temperature range -60 - +85 C°

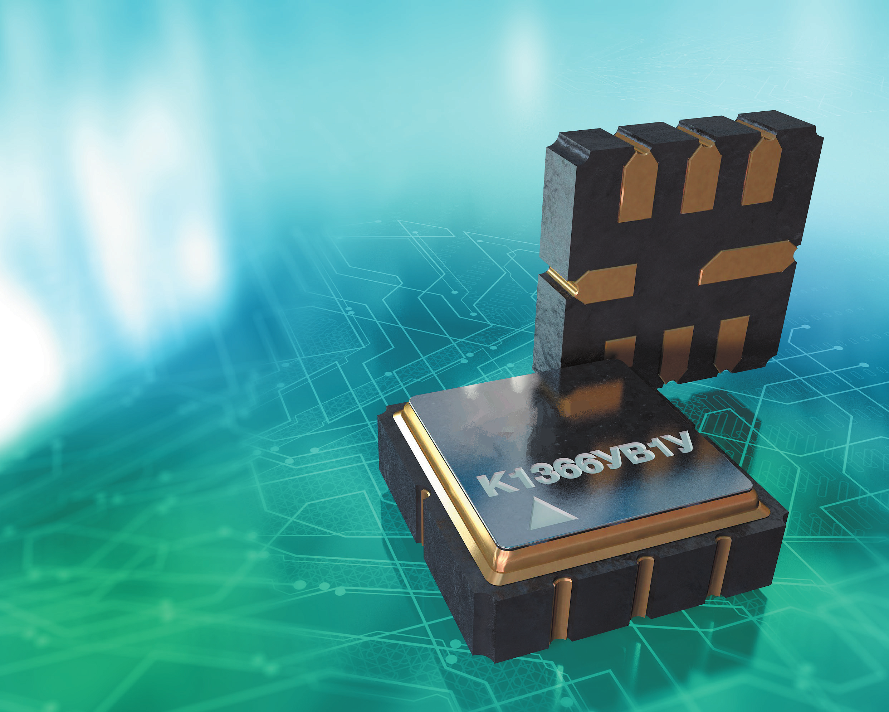

    Case 5140.8-АН3 (Metal and ceramic case)
    Consumption current 5 mA
    Noise figure 1,8 db
    Input Compression Point -30 dBm
    Input frequency range 0.1…2 GHz
    Operating frequency range 0.1…2 GHz
    Gain 21 dB
    VSWR (In 50 Ohm tract) 2

    Description

    Application of the chip: MMIC LNA is designed for equipment with severe restrictions on the level of power consumption, including: - satellite communications and navigation equipment; - radar; - appliances; Short description of the chip: Due to the capab
    ... Application of the chip:
    MMIC LNA is designed for equipment with severe restrictions on the level of power consumption, including:
    - satellite communications and navigation equipment;
    - radar;
    - appliances;
    Short description of the chip:
    Due to the capabilities of BiKMOS circuitry and the high speed of silicon-germanium transistors, silicon-germanium BiKMOS microwave MMIC LNA has significantly lower power consumption compared to gallium arsenide MMIC LNA with comparable noise parameters:
    - power consumption - 15 mW;
    - the noise figure is 1.8 dB.
    Read more...
