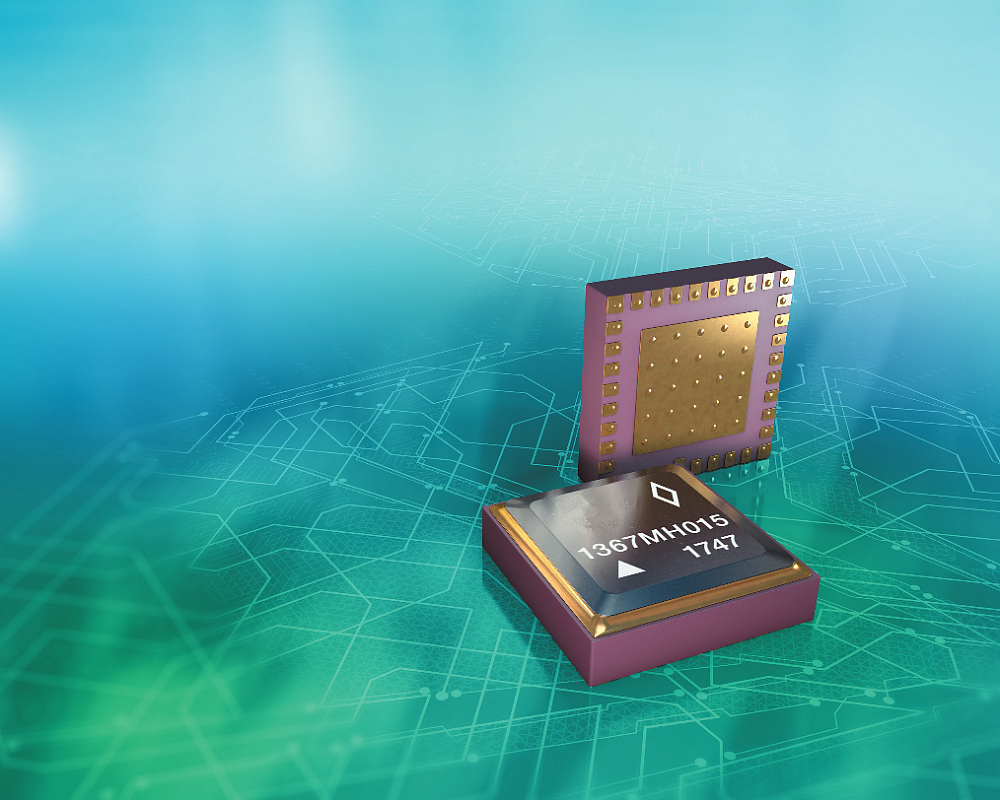

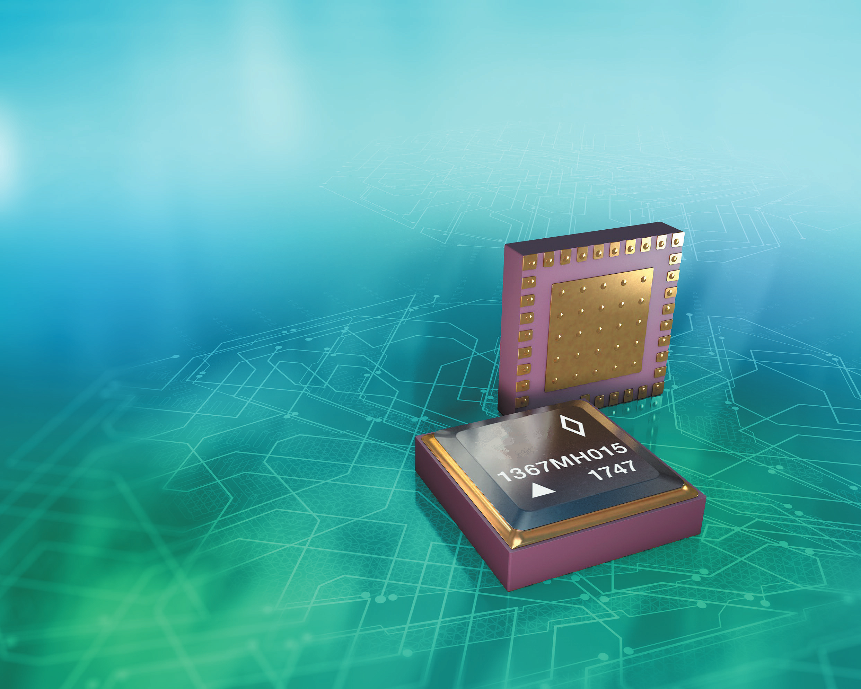

VLSI Frequency Synthesizer Based on Direct Digital Conversion

    • VLSI Frequency Synthesizer Based on Direct Digital Conversion

    Purpose:
    Construction of radio transceivers.
    Year of release: 2014
    Guaranteed service life (years): 3
    Estimated production / delivery time (months): 10
    Flight qualification of the product: No
    Possibility to adapt the product to customer requirements: No
    Submit application


    Parameter Value
    W*H*T 5*5*1 mm
    Weight 2 g
    Supply voltage 3.0…3.6 V
    Operating temperature range -60 - +85 C°
    Digital Supply Voltage 1.71…1.89 V
    Frequency setting bit 36 bit
    Phase Resolution 14 bit
    Case 5102.32-1К
    Consumption current 0.38…0.45 А
    Clock frequency 1…1200 MHz
    Maximum output frequency 600 MHz
    DAP, PMR input current 0.025 А
    DAP, PMR Integral linearity 0.5…2
    DAP, PMR differential nonlinearity 0.5…1.5

    Description

    Silicon-germanium BiCMOS VLSI frequency synthesizer based on direct digital conversion is designed to produce a stable high-frequency signal in the 600 MHz range with an ultra-low frequency tunning step, low phase noise and fast frequency tunning, as well as t
    ... Silicon-germanium BiCMOS VLSI frequency synthesizer based on direct digital conversion is designed to produce a stable high-frequency signal in the 600 MHz range with an ultra-low frequency tunning step, low phase noise and fast frequency tunning, as well as the possibility of frequency, phase and LFM modulation.
    Microcircuit_x000D_
    - radar, EW;
    - state recognition systems, navigation;
    - communications land, aviation, satellite;
    - broadband Wireless;
    - measuring equipment.
    Silicon-germanium BiCMOS VLSI frequency synthesizer based on direct digital conversion is designed to produce a stable high-frequency signal in the 600 MHz range with an ultra-low frequency tunning step, low phase noise and fast frequency tunning, as well as the possibility of frequency, phase and LFM modulation.
