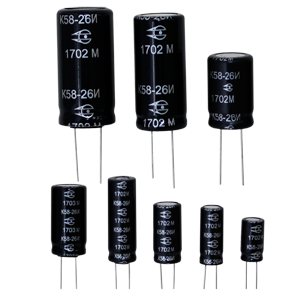

Capacitors K58-26

    • Capacitors K58-26

    Purpose:
    Maintaining operation of equipment when voltage drops occur; shutdown of equipment; a "bridge" when switching between power supplies; providing high discharge current in the equipment; rapid accumulation of electrical power and its output to the network; temporary power supply for equipment in autonomous mode; as energy storage device in difficult-to-reach and remote electronics; to improve reliability of operation of important equipment; may be used in combination with chemical and other power supplies.
    Year of release: 2017
    Guaranteed service life (years): -
    Estimated production / delivery time (months): 2
    Possibility to adapt the product to customer requirements: No
    Submit application


    Parameter Value
    Rated voltage, V 2.7
    Rated capacitance, F 1…100
    ESR DC, mΩ 15…200
    Leakage current, µA, 72 hours 15…200
    Capacitance tolerance, % +50…-20; ±20
    High environmental temperature, maximum value during operation, С 65
    Low environmental temperature, minimum value during operation, C minus 50

    Description

    Supercapacitors:
    Features:
    - volume from 0,65 to 12,5m3;
    - charge for a few seconds;
    - maintenance-free, immunity to charge level, no memory effect, no chemical reactions.
