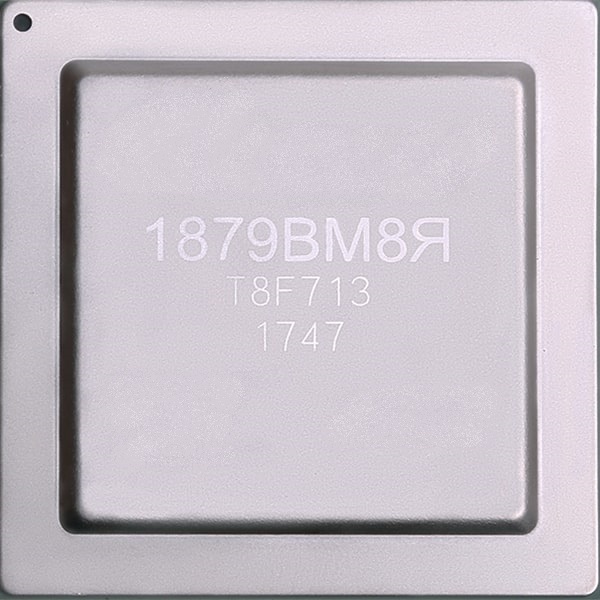

Integrated Circuit 1879 ВМ8Y

    • Integrated Circuit 1879 ВМ8Y

    Purpose:

    - video processing;

    - hydro and radar;

    - 3D machine vision;

    - neural networks;

    - heterogeneous computing systems.

    Submit application


    Parameter Value
    Type of shell HFCBGA-1444
    Supply voltage
    cores – 0,9 V;
    I / O buffers CMOS – 1,8 V;
    I / O buffers DDR3 – 1,5 V
    Dynamic current consumption
    CMOS buffers: 3 A (UCC1 = 1.98 V);
    DDR3 buffers: 3.8 A (UCC2 = 1.60 V);
    cores: 26 A (UCC3 = 0.95 V)
    Working temperature, °C -60 +85
    Technology CMOS 28 nm
    Type of acceptance 5
    Frequency
    ARM Cortex A5 - 800 MHz
    NMC4 - 1000 MHz

    Description

    Integrated microcircuit 1879BM8Y is a universal platform focused on solving problems of processing large data streams in real time (digital signal processing, image processing, navigation, communication, emulation of neural networks, etc.).
