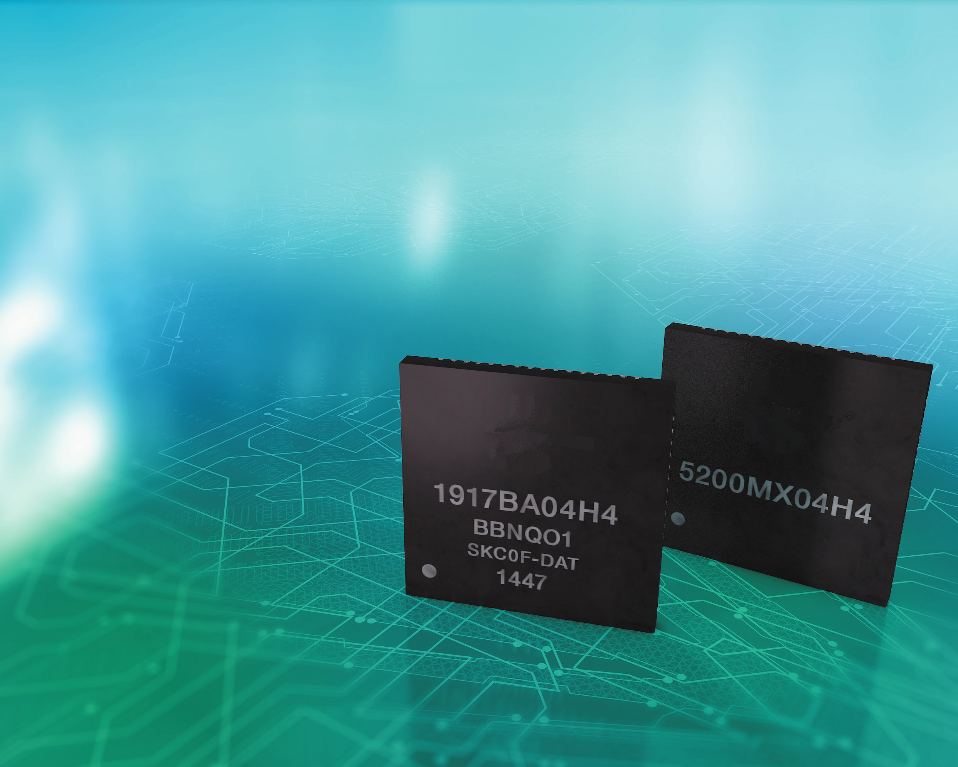

VLSI kit for low-power GLONASS / GPS navigation receiver

    • VLSI kit for low-power GLONASS / GPS navigation receiver

    Purpose:
    Navigation modules.
    Year of release: 2015
    Guaranteed service life (years): 3
    Estimated production / delivery time (months): 10
    Flight qualification of the product: No
    Possibility to adapt the product to customer requirements: No
    Submit application


    Parameter Value
    W*H*T 6х6х1 mm
    Weight 1 g
    Supply voltage 1,20 ± 0,12 V
    Operating temperature range -40 - +85 C°
    Number of channels 36
    Frequency range L1 GPS C/A, L1 GLONASS СТ, ВТ
    Power I / O 1,8 ± 0,18 V
    Battery power 1,6...3,6 V
    Consumption Active Tracking 0,07 W
    The frequency of the integrated processor 60 MHz

    Description

    VLSI kit for low-power GLONASS / GPS navigation receiver. VLSI 1 is designed for digital processing of signals from satellite navigation systems GLONASS (L1 PT, VТ) and GPS (L1 C/A), solving a navigation problem in a multi-channel combined GLONASS / GPS recei
    ... VLSI kit for low-power GLONASS / GPS navigation receiver.
    VLSI 1 is designed for digital processing of signals from satellite navigation systems GLONASS (L1 PT, VТ) and GPS (L1 C/A), solving a navigation problem in a multi-channel combined GLONASS / GPS receiver. Such a receiver should include a broadband linear path.
    VLSI 2 is designed for amplification, frequency conversion, filtering and digitization of signals from satellite navigation systems GLONASS (L1 VT) and GPS (L1 C / A) and is used in a multi-channel combined GLONASS / GPS receiver.
    Read more...
