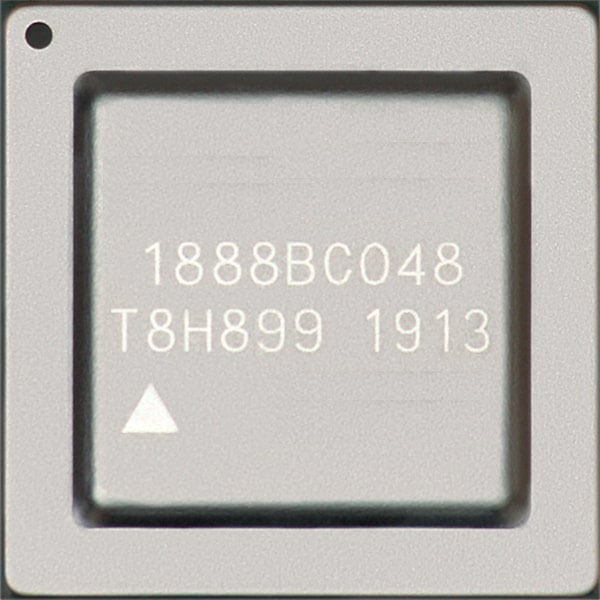

Multicontroller 1888 BC 048

    • Multicontroller 1888 BC 048

    Purpose:
    Designed to create small-sized integrated on-board information and control systems BIUS.
    Submit application


    Parameter Value
    Type of shell HFCBGA-676
    Supply voltage
    +3,3 V – for CMOS I / O buffers;
    +0,9 V – core voltage;
    +0,9 V – for PLLs and transceivers for PCIe and SGMII interfaces;
    +1,35 V – supply voltage of DDR3 I / O buffers;
    +1,8 V – general power for the analog part of the PCIe interface, power for the SGMII I / O buffers, and power for the temperature sensor
    Supply current
    Static Ucc2: 1000 mA (Ucc1 = 3.465 V, Ucc2 = 0.945 V);
    Dynamic UCC2: 5000 mA (Ucc1 = 3.465 V, Ucc2 = 0.945 V, operating frequency)
    Working temperature, °C -60 +85
    Technology CMOS 28 nm
    Type of acceptance 5
    Frequency
    Cortex-A5 processor cores - 600 MHz;
    reference frequency of the DDR3 RAM controller - up to 1066 MHz

    Description

    Multicontroller interfaces BIUS CAN / MKIO / UART / GbE / ARINC-429 / GPIO / SPI with a system interface PCI Express 2.0 onboard information management systems.
