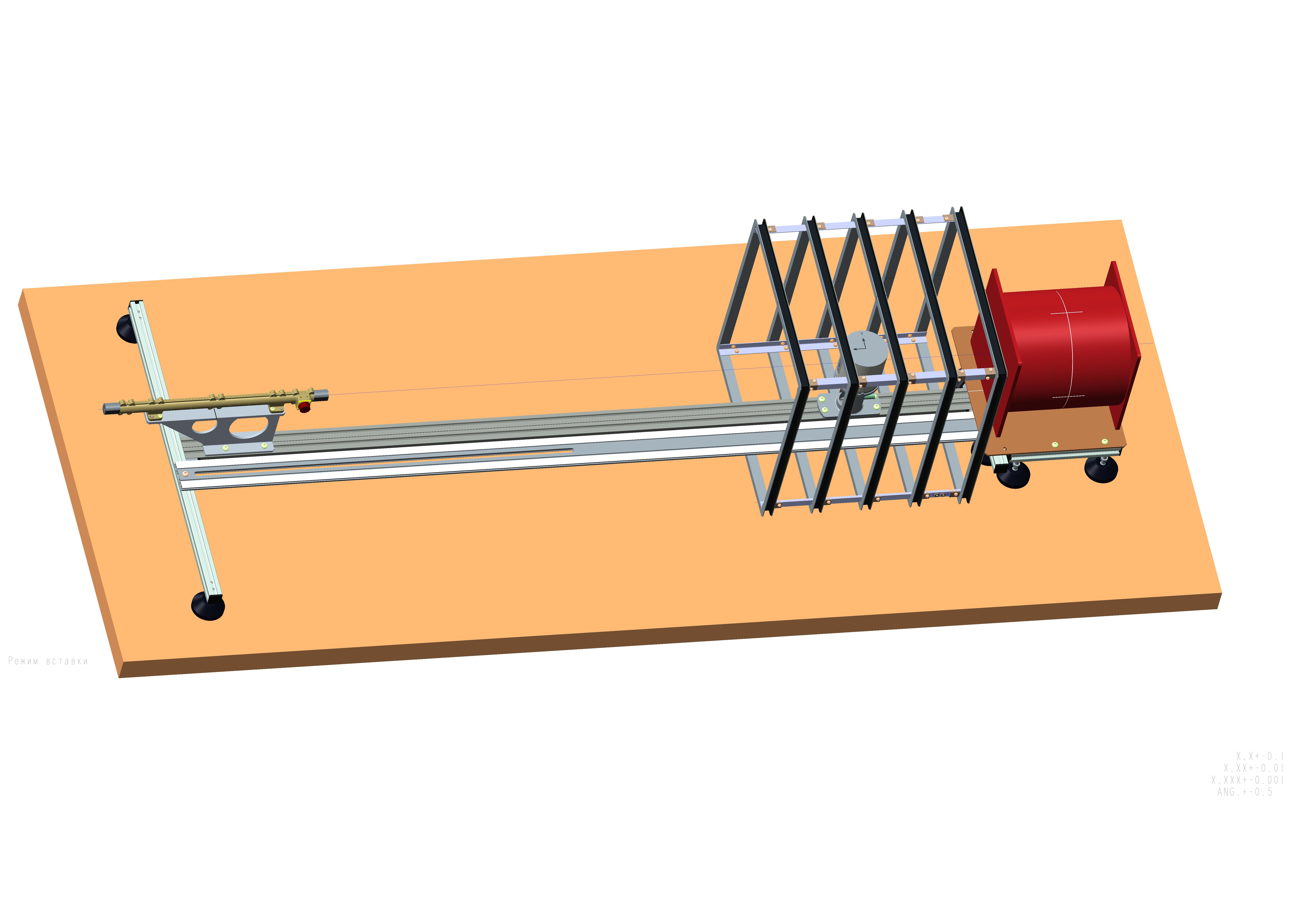

A Set of Stationary Control and Verification Equipment (SSCVE)

Purpose:
To control the induction of magnetic field associated with the dipole magnetic moment generated by the EMU, the value of which is proportional to the current flowing through the windings.
Year of release: 2017
Guaranteed service life (years): 3
Estimated production / delivery time (months): 6
Brief history of flight qualification:
Individual production.
Possibility to adapt the product to customer requirements: Yes


Parameter Value
Operating conditions Normal climatic conditions (NСС) according to GOST 15150-69
SSCVE mass excluding the mass of electrical equipment, power source and a standard measure of the magnetic moment ≤ 8 kg
The range of controlled the dipole magnetic moments 0,05 - 30 А·m²
Controlled residual magnetic moment ≤ 0,05 А·m²
Controlled number of windings 2
voltage supplied to the controlled product 0 -32 V
Current supplied to the controlled product 0 - 2 А
The direction of the magnetic moment Да
Overall dimensions 1300 х 570 х 320 mm

Description

A set of stationary control and test equipment (SSCTE).

Remark

Service life 10 years.
