Complex IVK-SOK-M

    • Complex IVK-SOK-M

    Purpose:
    Designed for testing the spacecraft orientation system.
    Year of release: 2009
    Guaranteed service life (years): 10
    Estimated production / delivery time (months): 12
    Possibility to adapt the product to customer requirements: Да
    Submit application


    Parameter Value
    Universal Communication Interfaces MIL-STD-1553B
    Programmable DC voltage supply with periodic voltage value monitoring (24 - 31) V, up to 3.5 A, 3 channels
    Formation of a long management team U ≤ 15 V, (0.5 - 1.5) A, load (6 - 8) Ohm
    On-off signal generation (90 ± 5) mA, (12 ± 2) mA, 11 channels
    Analog Signal Conditioning ± 10 V, ≤ 5 mA, 6 channels
    Control of parameters of on-off signals (24 - 31) V, 0.2 A, (0.03 - 10) s, 6 channels
    Control of on-off signals of the ≤ 15 V, ≤ 5mA, 42 channels
    Monitoring the condition of temperature sensors (external device) Rх = (50 - 100) Ohm, 8 channels
    Simulation and compensation of the Earth's magnetic field ±10 V
    Reception and processing of packet pulse telemetry via a serial channel: packet size, packet repetition rate, pulse repetition rate 512 bit, 50 Hz, 40 kHz
    Reception and processing of parallel code 12 bits, frequency 40 Hz
    Uninterruptible power supply for the correct completion of the test program in the event of a power failure Yes
    Software Windows OS, special software for preparing and executing test programs, test software

    Description

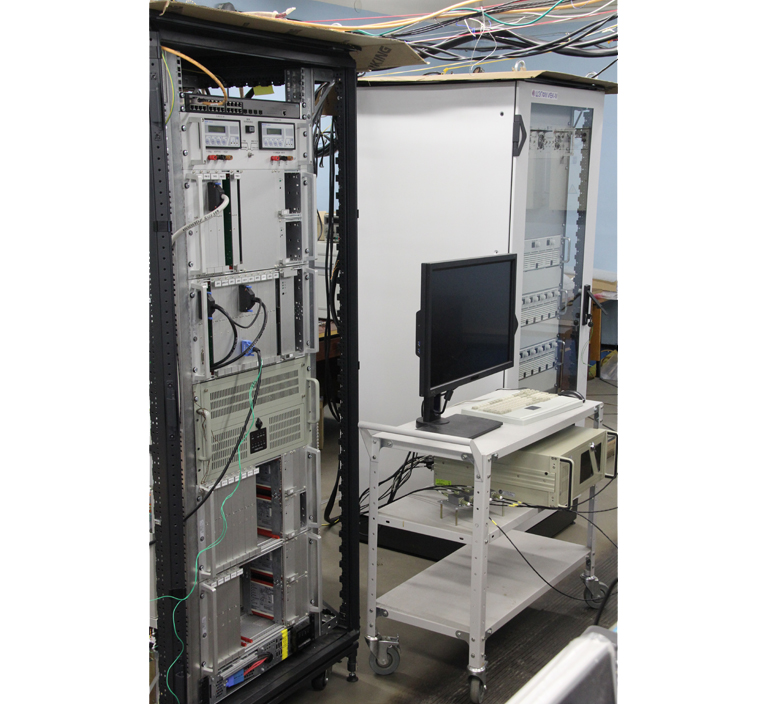

    IVK-SOK-M contains an industrial computer, a device for interfacing a computer with a spacecraft orientation system, a cross, a product simulator.
