Magnetic Field Simulator

    • Magnetic Field Simulator

    Purpose:
    Designed for magnetic field simulation along the orbital trajectory of a satellite.
    Year of release: 2009
    Guaranteed service life (years): _
    Estimated production / delivery time (months): 5
    Flight qualification of the product: No
    Possibility to adapt the product to customer requirements: No
    Submit application


    Parameter Value
    Dimensions, mm 2000x2000x200
    Max field amplitude (w/o Earth magnetic field), nT 150,000
    Homogeneity zone diameter, mm 600

    Description

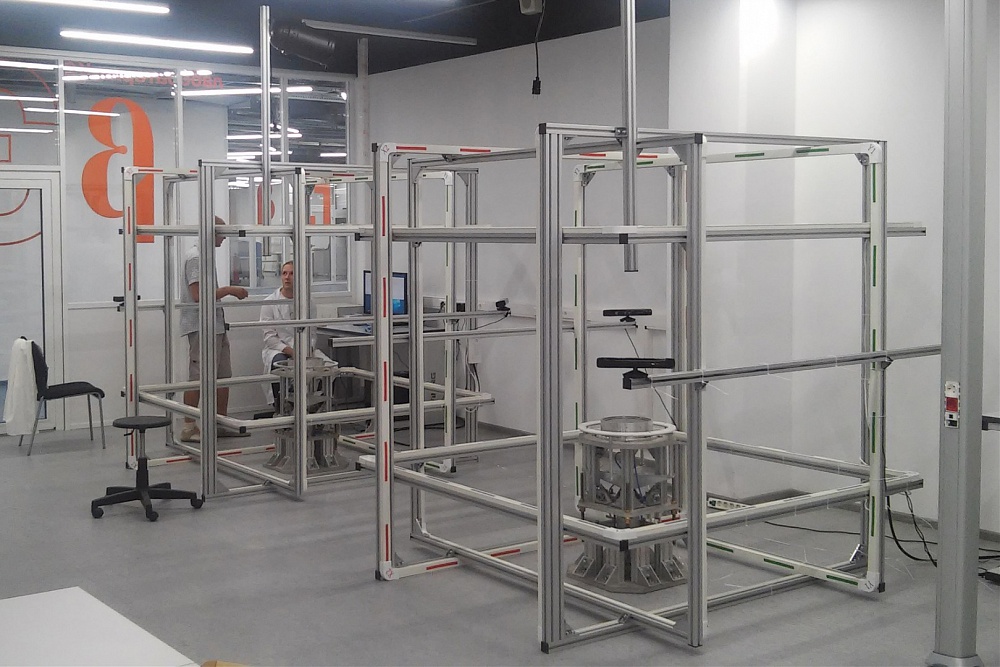

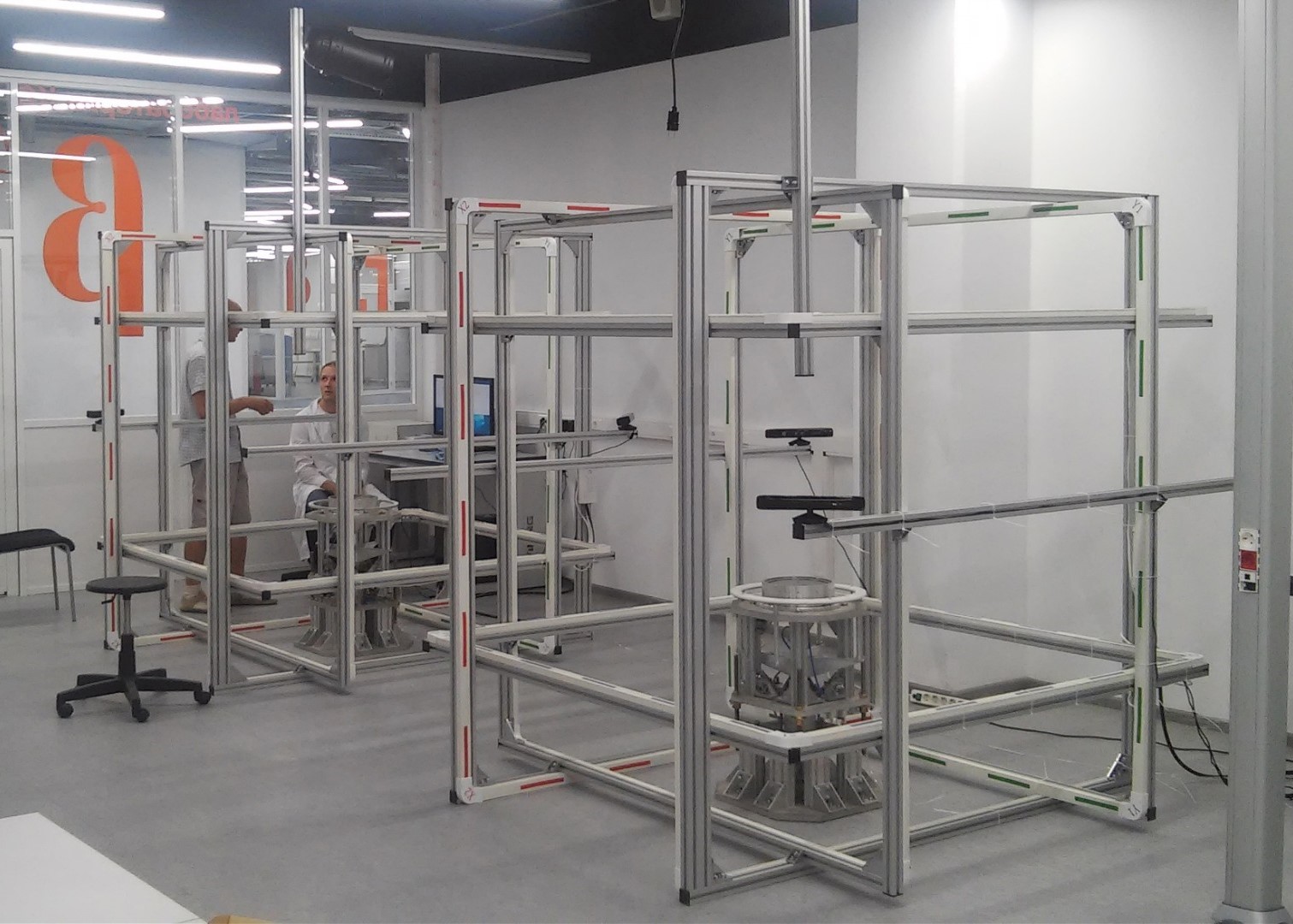

    System of three pairs of square coils mutually orthogonal to each other (Helmholtz cage) simulates the magnetic field as it changes during the orbital flight the satellite. By inducing current in coil’s wires the magnetic field is created and its direction a
    ... System of three pairs of square coils mutually orthogonal to each other (Helmholtz cage) simulates the magnetic field as it changes during the orbital flight the satellite.
    By inducing current in coil’s wires the magnetic field is created and its direction and value depend on the amperage. Currents in cage is controlled by block of pulse-width modulators, which is connected to personal computer through USB and using magnitometer for getting feedback.
    Read more...
