High-precision automated angle-setting complex

    • High-precision automated angle-setting complex

    Purpose:
    It is designed for quality control of manufacturing and testing of devices used in control systems of rocket and space technology, such as angle sensors of various types, accelerometers, tilt meters, gyroscopic devices. The angle-setting complex has the ability to set angles both manually and automatically (by an electric drive controlled by software). The angle-setting complex has the capability to perform an autonomous (without the use of additional measuring instruments) automatic calibration of the complex during operation to reduce the measurement error in the current climatic conditions.
    Year of release: 2008
    Flight qualification of the product: yes
    Brief history of flight qualification:
    Quality control of manufacturing devices of the control system of upper stage "Fregat", LV "Proton-M", LV "Angara»
    Possibility to adapt the product to customer requirements: yes
    Submit application


    Parameter Value
    Range of measurement of angles, ...° 0..360
    The error of measurement of angles, … ±0,5
    Resolution capacity, … ≈0,013
    Permissible angle of rotation of the faceplate not limited
    Maximum load, no more than

    - when the axis of rotation is vertical

    - when the axis of rotation is horizontal
    65

    10
    Overall dimensions, mm

    - turntable < / p> - electronic unit
    363х267х116

    300х160х110
    Weight, kg

    - turntable < / p> - electronic unit
    45

    5
    Automatic self-calibration yes

    Description

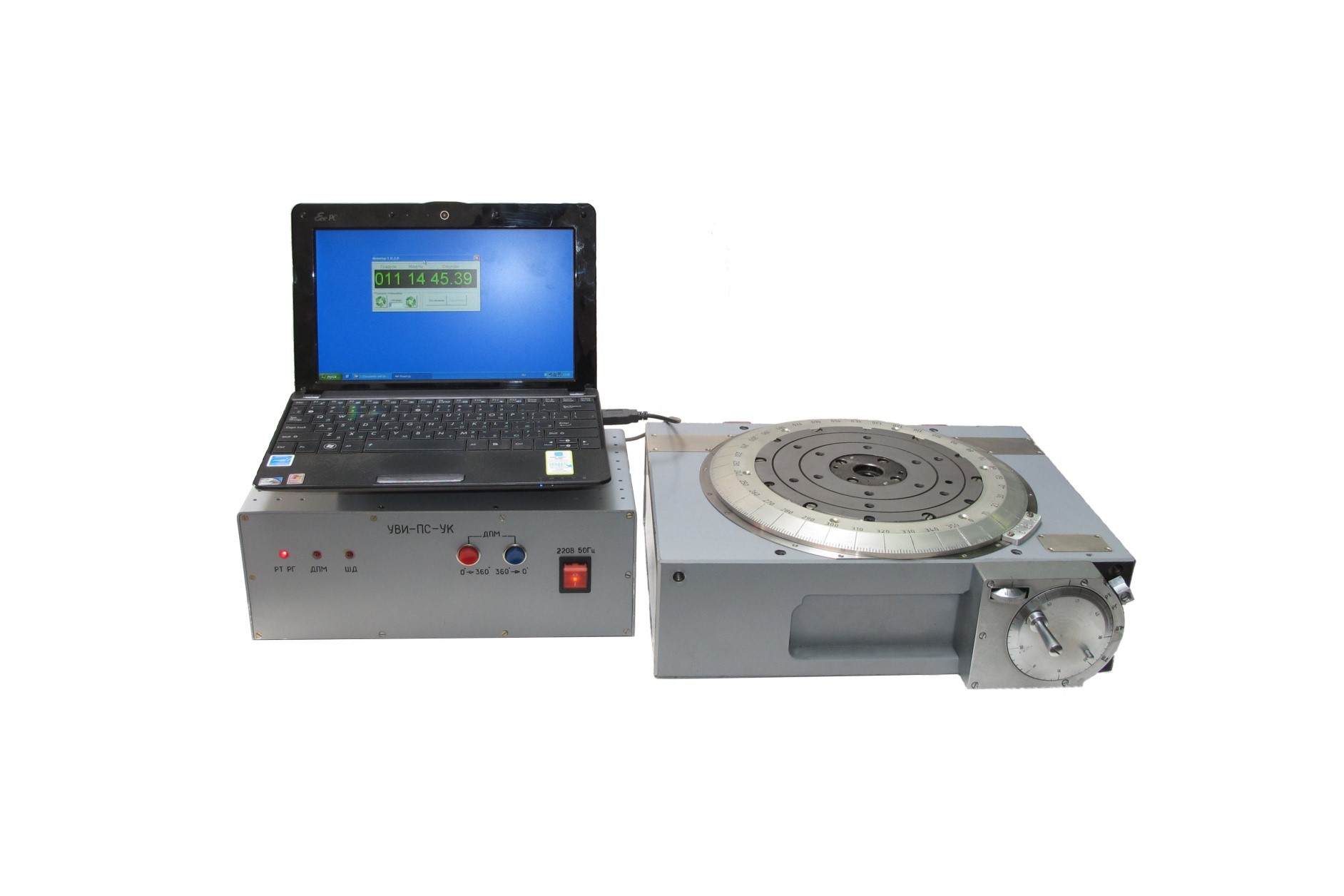

    High-precision device for setting and measuring the angular position in the range of angles from 0° to 360° in the vertical and horizontal plane.

    Remark

    Application areas:

    - Aviation

    - Space

    - Radio engineering, electronics, microelectronics

    - Civil industries
