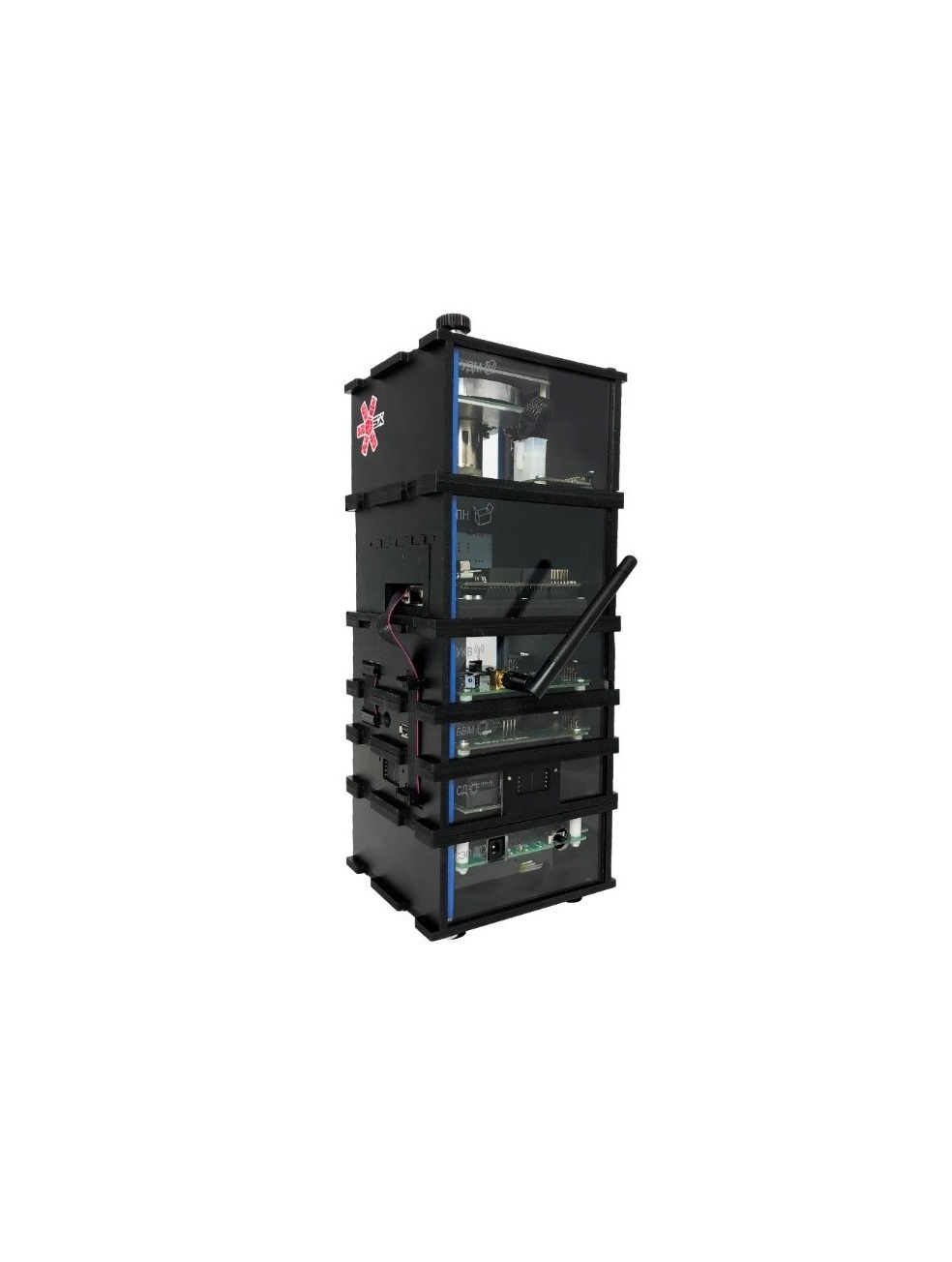

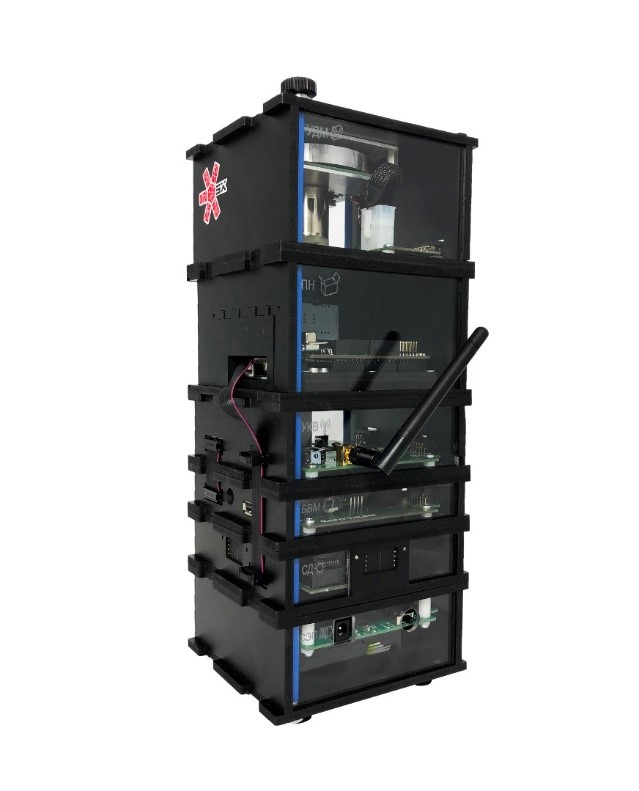

"OrbiCraft 3D" nanosatellite functional kit

    • "OrbiCraft 3D" nanosatellite functional kit

    Purpose:
    OrbiCraf 3D is an educational kit for nanosatellite platform design for studying the principles of satellite engineering for spacecraft design, assembly, testing and operation processes.
    Year of release: 2020
    Guaranteed service life (years): 1
    Estimated production / delivery time (months): 2
    Submit application


    Parameter Value
    Communication interface onboard satellite layout CAN
    Data Interface Onboard Mock Satellite-MCC Wi-Fi, VHF
    The main type of connectors on the satellite layout modules IDC 10
    Side voltage 6,6 — 8,4 V
    Weight of the standard constructor 2 kg
    Case material Foamed black PVC, plexiglass, aluminum

    Description

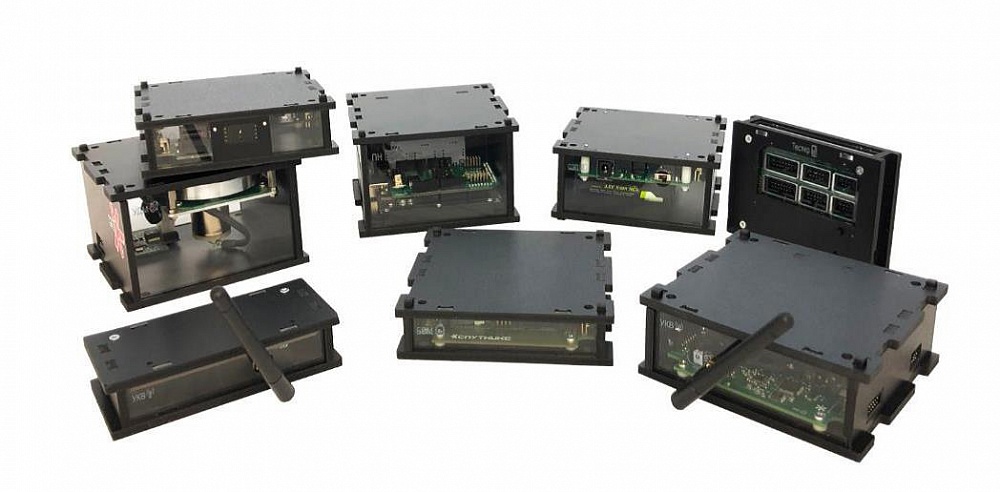

    OrbiCraft 3D is an educational kit for nanosatellite platform design.
    The kit allows:
    • develop and test orientation and stabilization algorithms using reaction wheels, solar, magnetic field, and angular velocity sensors;
    • practice receivin
    ... OrbiCraft 3D is an educational kit for nanosatellite platform design.
    The kit allows:
    • develop and test orientation and stabilization algorithms using reaction wheels, solar, magnetic field, and angular velocity sensors;
    • practice receiving and transmitting information via the UHF radio channel, simulating directional radio communication;
    • simulate the Earth remote sensing process;
    • design the Arduino Mega based payload, connect Troyka modules;
    • gain skills in programming, sensor calibration, and data processing from different types of sensors.
    The kit is delivered in a basic configuration with a flywheel for rotation in one axis. It can be updated by the 3-axis module.
    It is possible to complete the orientation and stabilization tasks with the help of the lifting bar using a thread (one-axis) or lifting frame (3-axis).
    RECOMMENDATION: 1 KIT FOR 3-5 STUDENTS
