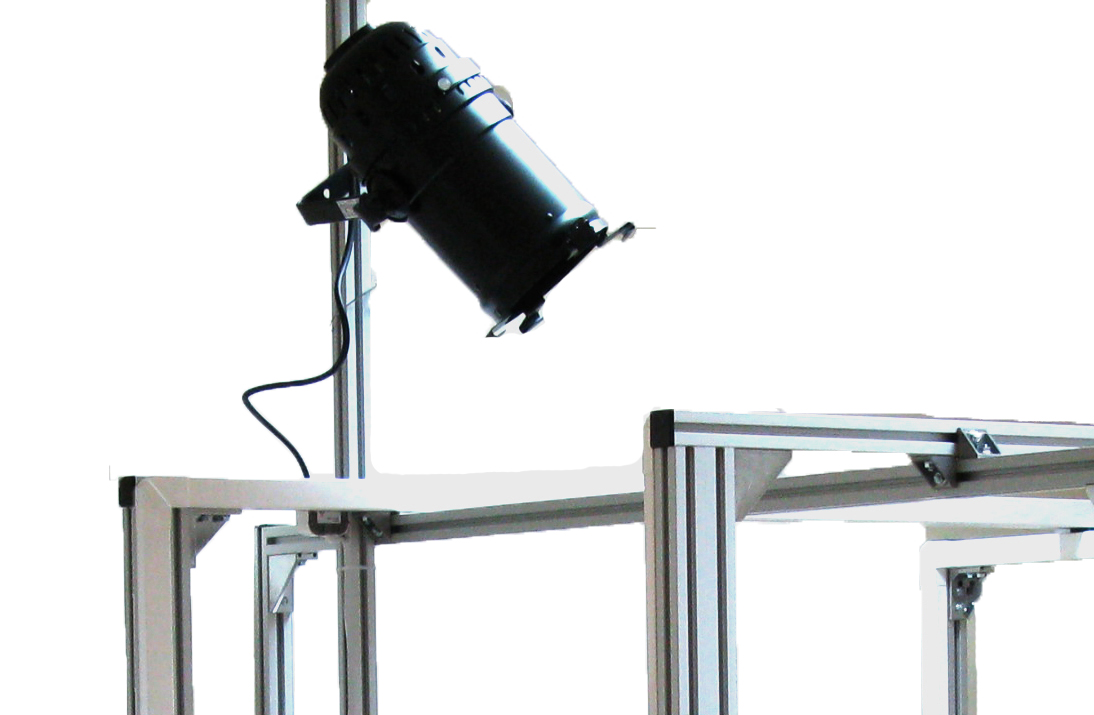

Sun Simulator (halogen)

    • Sun Simulator (halogen)

    Purpose:
    Desidned for testing of ADCS Sun orientation capability.
    Year of release: 2009
    Guaranteed service life (years): _
    Estimated production / delivery time (months): 1
    Flight qualification of the product: No
    Possibility to adapt the product to customer requirements: No
    Submit application


    Parameter Value
    Light power, W 1000
    Light spot diameter, mm 600
    Radiation flux, WПоток излучения, W/m2 1400
    Illumination from 1.5 m, lx, not less than 80000
    Beam angle 12°
    Operating voltage, V 220

    Description

    Sunlight simulator has the emission power similar to that of the Sun. The radiation source is a halogen lamp.
