Lens SOVA-5

    • Lens SOVA-5

    Purpose:
    Wide lens lens for detection of low-orbital space objects at altitudes from 120 to 500 km
    Year of release: 2007
    Guaranteed service life (years): 10 years
    Estimated production / delivery time (months): 9
    Submit application


    Parameter Value
    Focal length 100 mm
    Working segment 29 mm
    Energy concentration in the scattering spot 24 mm not less than 80%
    Linear field in image space 74 mm
    average transmittance coefficient in the spectral range of 0.45 ... 0.85 μm not less than 0,7
    Angular field in object space 40º
    weight not more than 26 kg

    Description

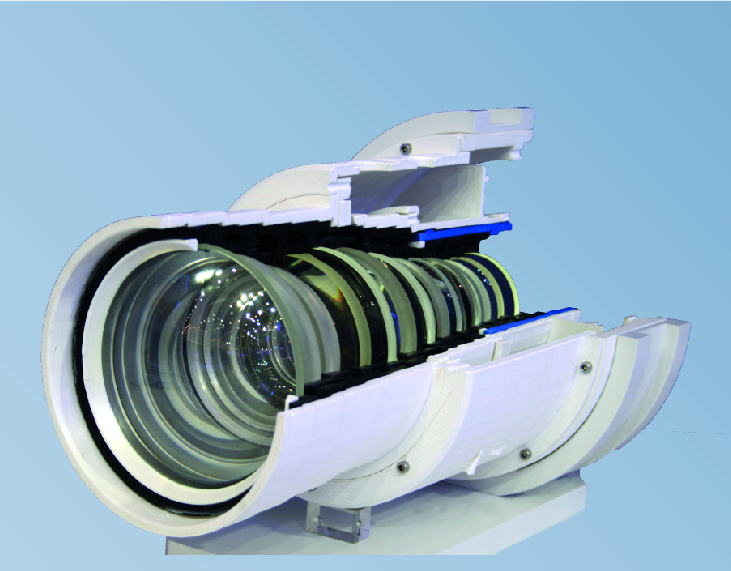

    13 lens width lens

    Features:

    - 13 lenses with different surface curvature

    - wide viewing angle - 40 °

    - transmission factor 0.7

    Remark

    Focal length
