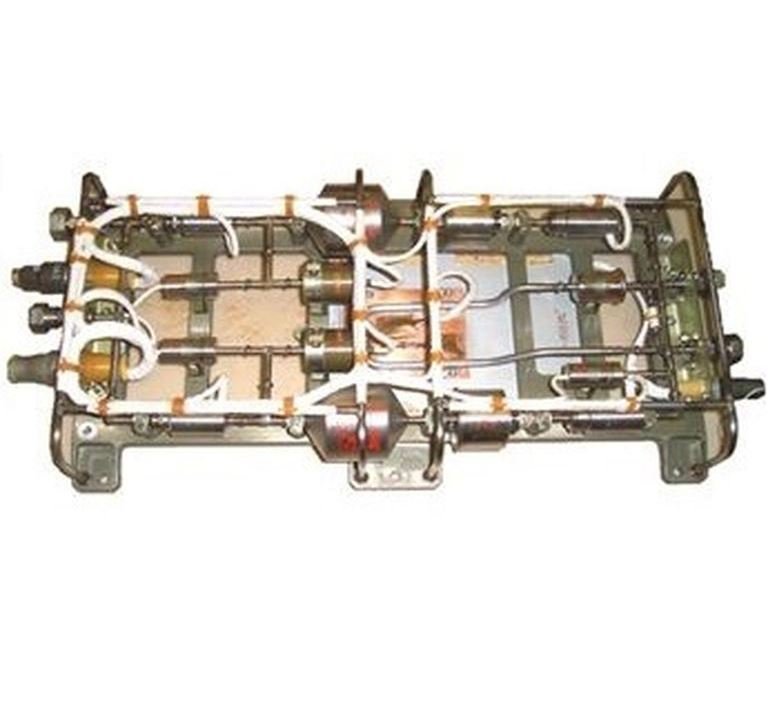

Xenon Feed Unit. Type 2

Providing Xenon at the specified pressure and flow rate to the orbit control propulsion units.
Year of release: 2006
Guaranteed service life (years): 19
Estimated production / delivery time (months): 9
Flight qualification of the product: Yes
Possibility to adapt the product to customer requirements: Yes

Parameter Value
Propellant flow rate 4 to 15 mg/s
Inlet operating pressure (excess), kgf/cm2 250 to 5
Outlet operating pressure (excess), kgf/cm2 2.6±0.12
Operating temperature range, °С -20 to +50
Active lifetime, years 15.5
Mass, kg 2.6


Pneumatic automation equipment.
