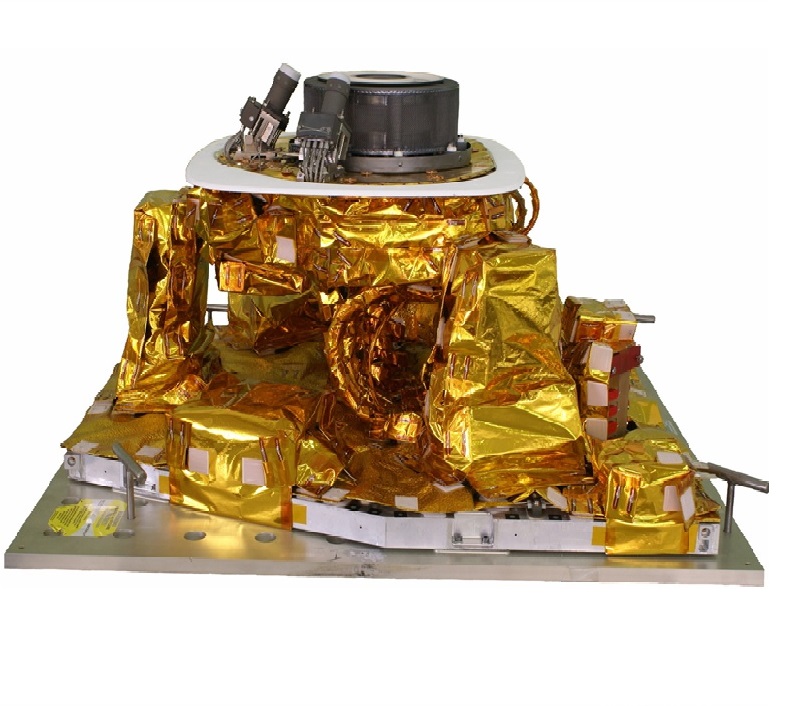

Integrated Thruster Unit

    • Integrated Thruster Unit

    Purpose:
    ITU-5000M is intended for creating the required thrust forces when forming the spacecraft operating orbit followed by station keeping within the required limits during spacecraft operation in space conditions.
    Year of release: 2008
    Guaranteed service life (years): 15
    Estimated production / delivery time (months): 14
    Flight qualification of the product: No
    Possibility to adapt the product to customer requirements: Yes
    Submit application


    Parameter Value
    Nominal range of station keeping – pitching motion [-34⁰; +14⁰]
    Nominal range of station keeping – yaw [-14⁰; +14⁰]
    Nominal rotation speed 0.2 ⁰/s
    Resolution capability 0.00205 ⁰
    Qualification life of motors-gear boxes 10000 cycles in a full angular range; 90000 cycles in an angular range of ± 1°; 26000 cycles in an angular range of ± 5°
    Power consumption ≤ 50 W
    Overall dimensions 776х760х416 mm
    Mass ≤ 31 kg

    Description

    ITU-5000M includes a high-precision Thruster Orientation Mechanism (TOM) and a propulsion system based on the Modified Stationary Plasma Thruster with a discharge power of up to 5 kW. Each propulsion system consists of a thruster and a XFC Unit, pneumatic conn
    ... ITU-5000M includes a high-precision Thruster Orientation Mechanism (TOM) and a propulsion system based on the Modified Stationary Plasma Thruster with a discharge power of up to 5 kW. Each propulsion system consists of a thruster and a XFC Unit, pneumatic connections between which are realized by means of stainless steel pipelines. Propellant – xenon.
    Read more...

    Remark

    Manufacturing lead time is given without taking into account the time needed to procure materials (4 months) and procured parts and components (6 months).
